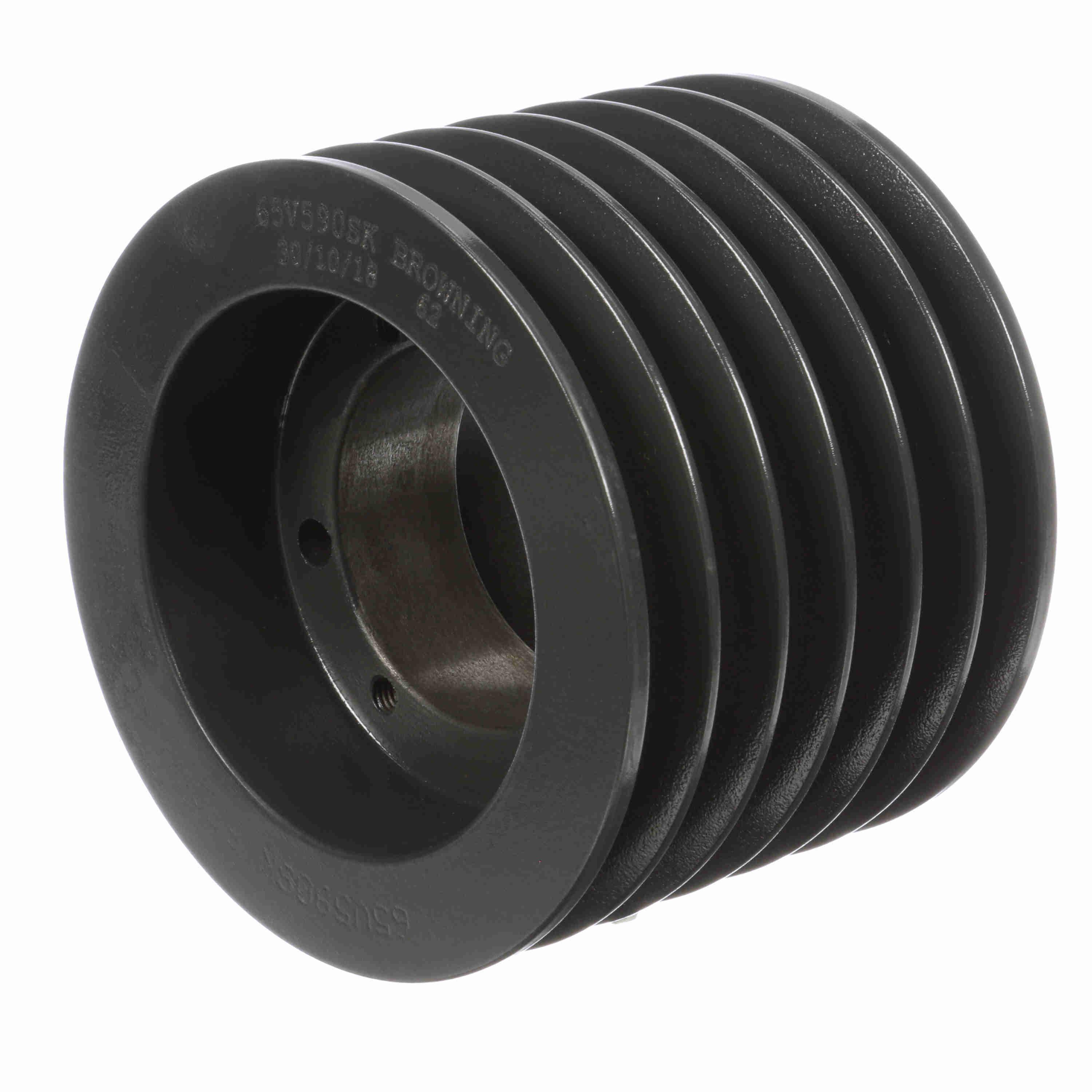

Browning® 3063278 Type A Solid Multiple Sheave, 1/2 to 2-5/8 in QD® Bore, 5.9 in OD, 6 Grooves, 5.8 in Dia Pitch, 4-7/16 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289469123
-
Manufacturer Part Number3063278
-
CountryUSA
-
Face Width4-7/16 in
-
Bushing TypeSK
-
Pitch Diameter5.8 in
-
MaterialCast Iron
-
TypeType A Solid
-
Number of Grooves6
-
Outside Diameter5.9 in
-
Bore Diameter1/2 to 2-5/8 in
-
Bore TypeQD®
-
Suitable For Use WithGripBelt® 5V Cross Section V-Belt
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- Wrapped construction - Provides smooth quiet operation
- Single fabric design allows greater flexibility
- Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
-
Alternative Part Number65V590SK
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
