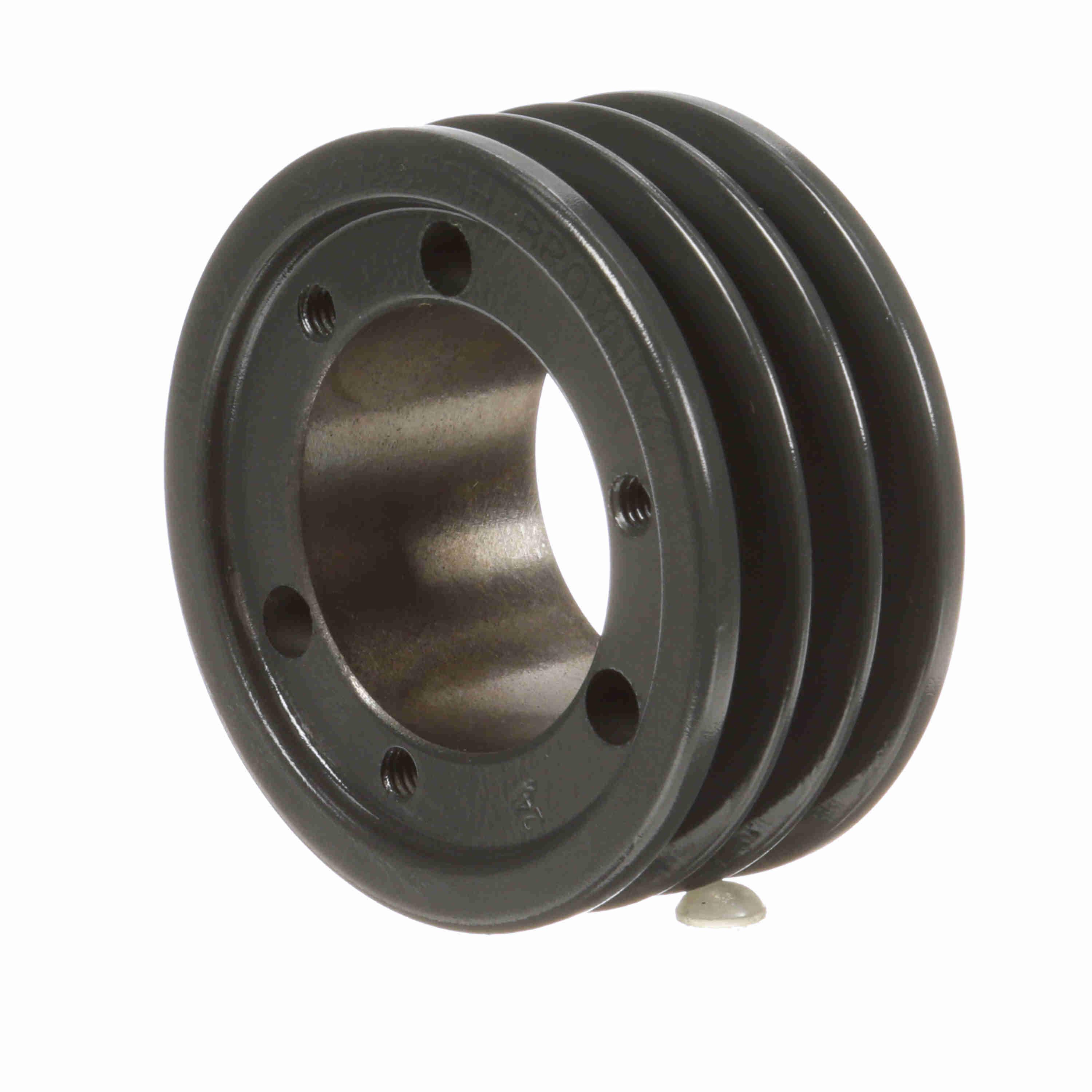

Browning® 1064690 Type D Solid Multiple Sheave, 1/2 to 1-5/8 in QD® Bore, 3.35 in OD, 3 Grooves, 3.3 in Dia Pitch, 1-1/2 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289403752
-
Manufacturer Part Number1064690
-
CountryUSA
-
Face Width1-1/2 in
-
Bushing TypeSH
-
Pitch Diameter3.3 in
-
MaterialCast Iron
-
TypeType D Solid
-
Number of Grooves3
-
Outside Diameter3.35 in
-
Bore Diameter1/2 to 1-5/8 in
-
Bore TypeQD®
-
Suitable For Use WithGripBelt® 3V Cross Section V-Belt
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number33V335SH
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Instruction/Installation Manual
-
Catalog
-
Warranty Information
