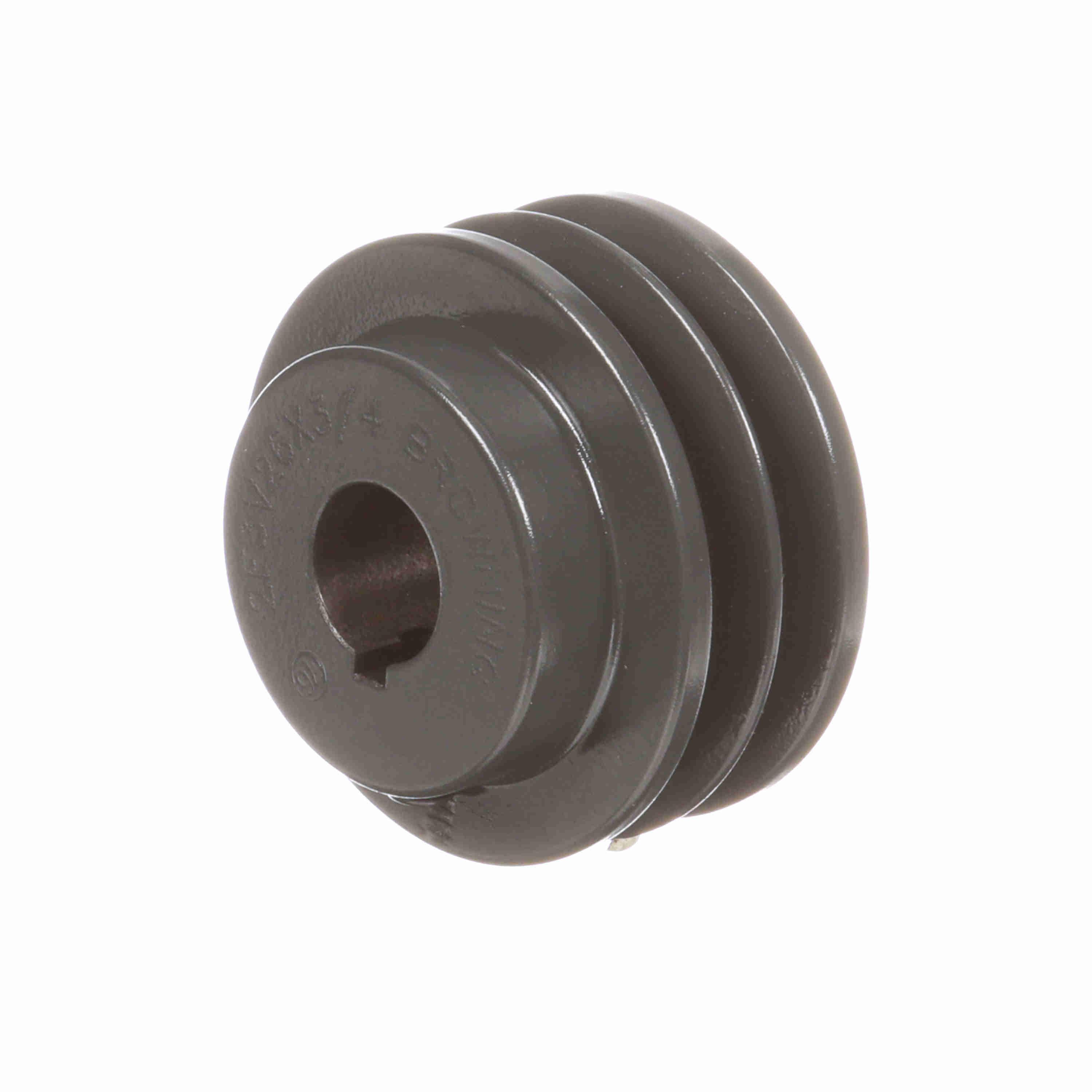

Browning® 1059419 Type F Multiple Sheave, 3/4 in Finished Bore, 2.65 in OD, 2 Grooves, 2.6 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289278909
-
Manufacturer Part Number1059419
-
CountryUSA
-
Face Width1-3/32 in
-
Pitch Diameter2.6 in
-
MaterialCast Iron
-
TypeType F
-
Hub Diameter1-7/8 in
-
Hub Projection15/32 in
-
Number of Grooves2
-
Outside Diameter2.65 in
-
Bore Diameter3/4 in
-
Bore TypeFinished
-
Overall Length1-9/16 in
-
Suitable For Use WithGripBelt® 3V Cross Section V-Belt
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
- Notched belts provide higher horsepower than wrapped belts
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number2F3V26X3/4
-
UNSPSC26111806
-
Includes3/16 x 3/32 in Keyseats and (1) Hollow Head Setscrews
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
