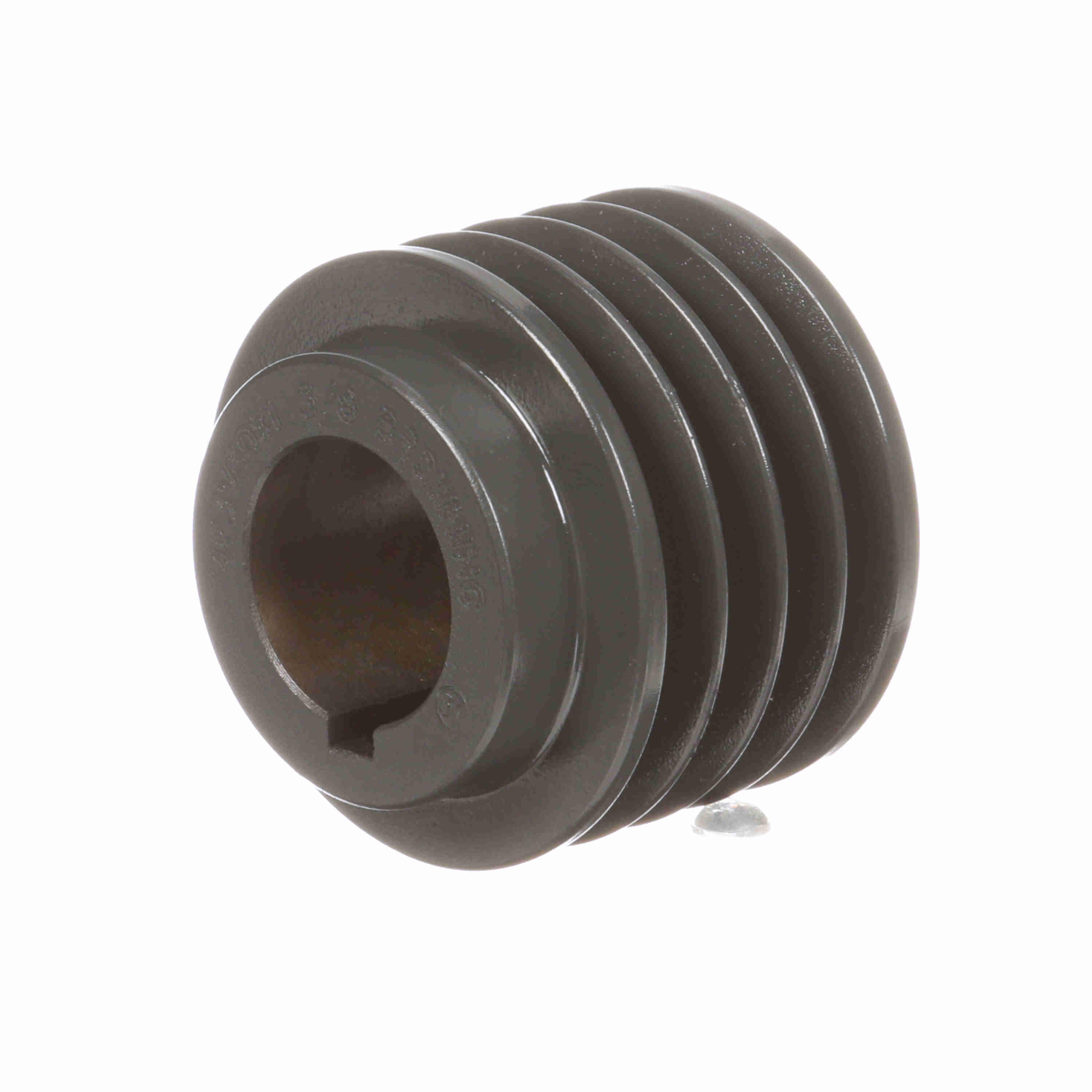

Browning 4-GRV 3-V-BELT SHEAVES/PULLEYS BRW 4-F-3-V-30 X 1-3/8
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289311729
-
Manufacturer Part Number1059690
-
CountryUSA
-
Face Width1-29/32 in
-
Pitch Diameter2.9 in
-
MaterialCast Iron
-
TypeType F
-
Hub Diameter2.188 in
-
Hub Projection15/32 in
-
Number of Grooves4
-
Outside Diameter3 in
-
Bore Diameter1.38 to 1.375 in
-
Bore TypeFinished
-
Overall Length2-3/8 in
-
Suitable For Use WithGripBelt® 3V Cross Section V-Belt
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number4F3V30X 1 3/8
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
