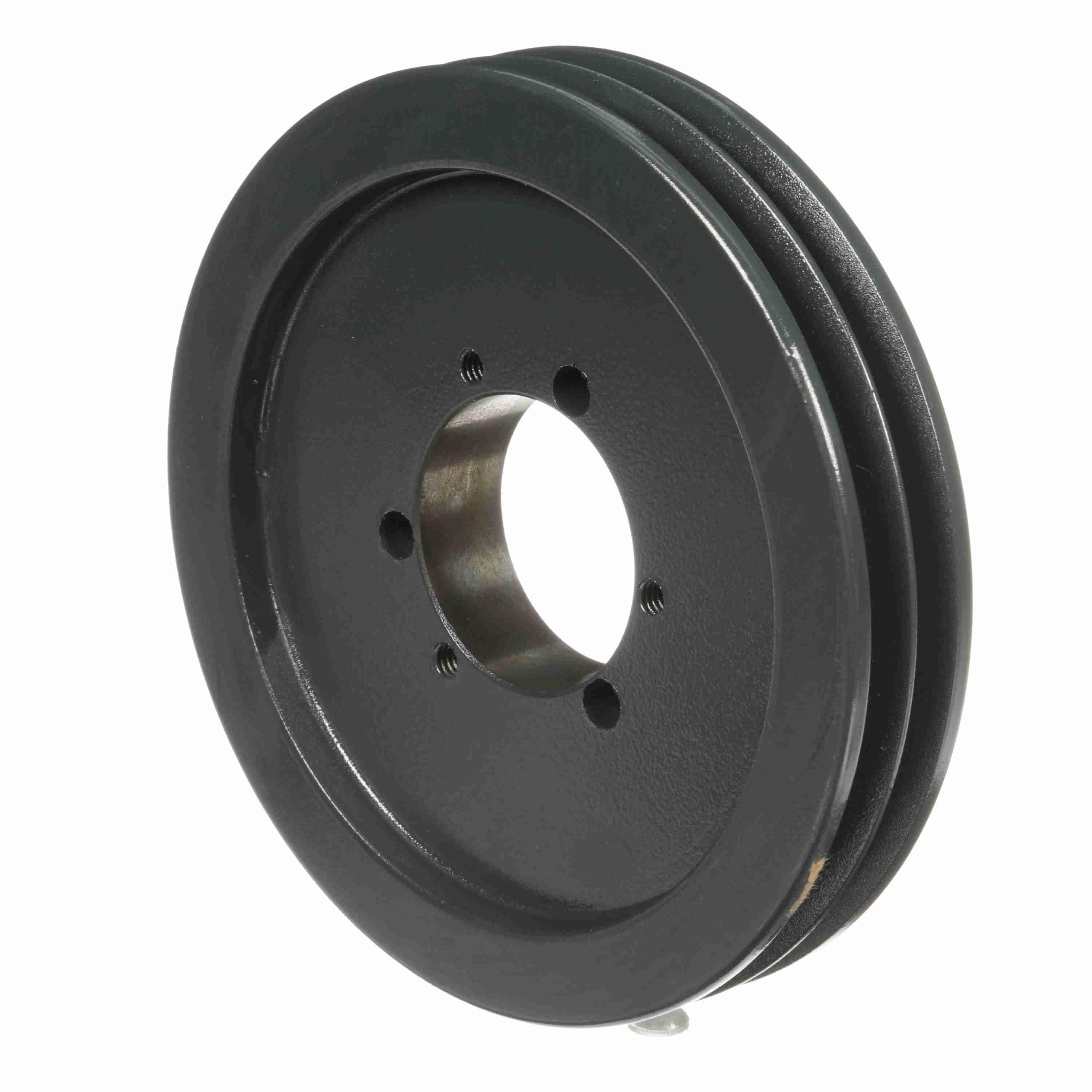

Browning® 1064575 Multiple Sheave, 1/2 to 1-5/8 in QD® Bore, 6 in OD, 2 Grooves, 5.95 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289403684
-
Manufacturer Part Number1064575
-
CountryUSA
-
Face Width1-3/32 in
-
Bushing TypeSH
-
Pitch Diameter5.95 in
-
MaterialCast Iron
-
Hub Projection0.3875 in
-
Number of Grooves2
-
Outside Diameter6 in
-
Bore Diameter1/2 to 1-5/8 in
-
Bore TypeQD®
-
Overall Length1.48125 in
-
Suitable For Use With3V-Cross Section V-Belts
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number23V600SH
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
