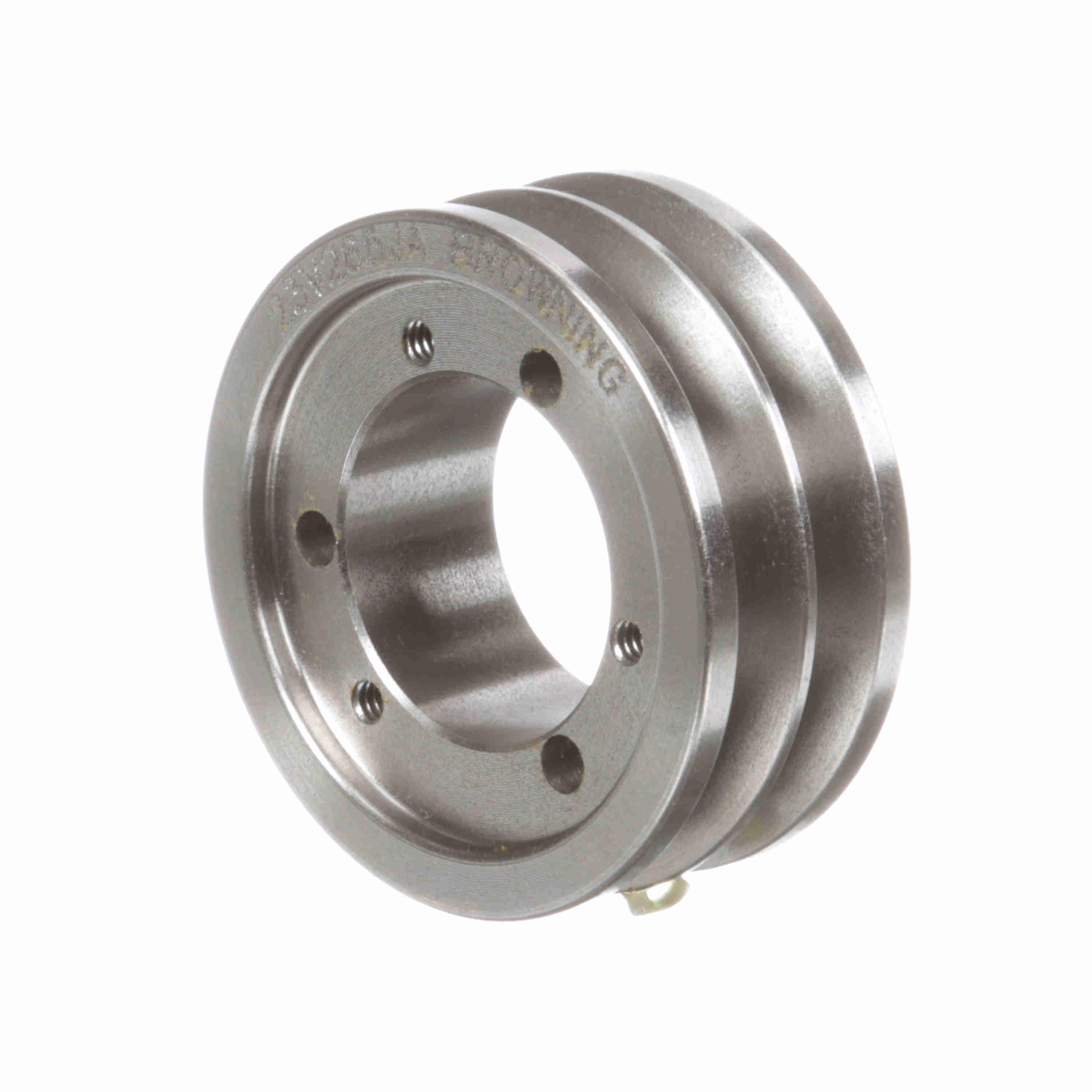

Browning® 1064450 Multiple Sheave, 1/2 to 1-1/4 in QD® Bore, 2.65 in OD, 2 Grooves, 2.6 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289373581
-
Manufacturer Part Number1064450
-
CountryUSA
-
Face Width1-3/32 in
-
Bushing TypeJA
-
Pitch Diameter2.6 in
-
MaterialCast Iron
-
Hub Projection0.42375 in
-
Number of Grooves2
-
Outside Diameter2.65 in
-
Bore Diameter1/2 to 1-1/4 in
-
Bore TypeQD®
-
Overall Length1.5175 in
-
Suitable For Use With3V-Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number23V265JA
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
