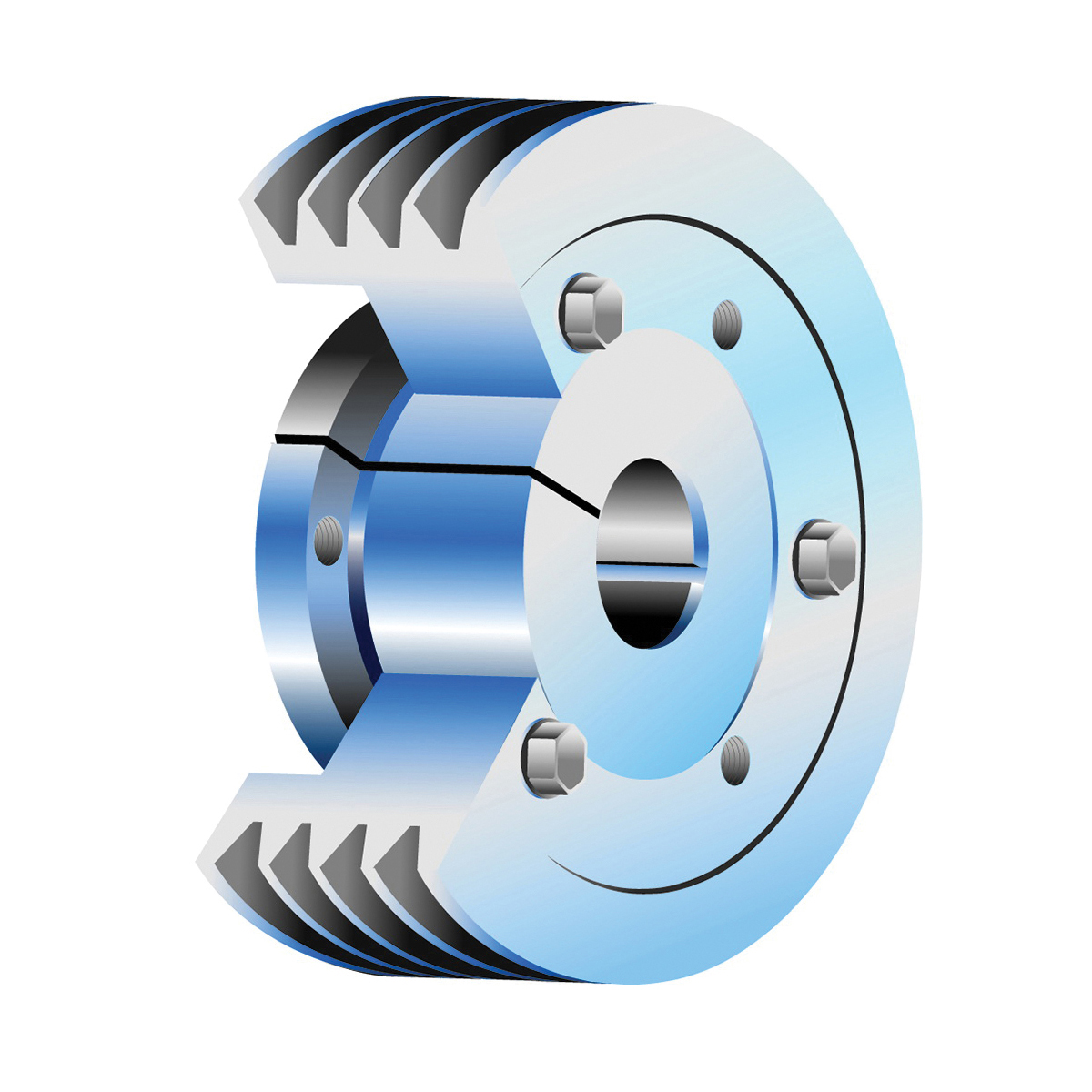

Gates® Power Transmission Super HC® QD9/5V13.20 Heavy Duty Multiple Groove Sheave, 3-15/16 in QD® Bore, 13.2 in OD, 9 Grooves, 6-1/2 in W Face
Gates QD, or "Quick Disconnect", sheaves are designed for easy, convenient use with your Super HC™ and Super HC PowerBand® belts.
-
BrandGates® Power Transmission
-
UPC770075436546
-
Manufacturer Part NumberQD9/5V13.20
-
CountryUSA|Canada
-
Face Width6-1/2 in
-
Bushing TypeF
-
MaterialDuctile Iron
-
TypeHeavy Duty
-
Series7874
-
Number of Grooves9
-
Outside Diameter13.2 in
-
Bore Diameter3-15/16 in
-
Bore TypeQD®
-
Suitable For Use WithSuper HC® and Super HC® PowerBand® Belts
- Full split in bushing allows easy installation and removal
- Precise sheave design produces positive, press fit to shaft
- Narrower sheave design is precision manufactured, static balanced and transmits higher horsepower
-
Alternative Part Number78749132
-
UNSPSC31171804
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
