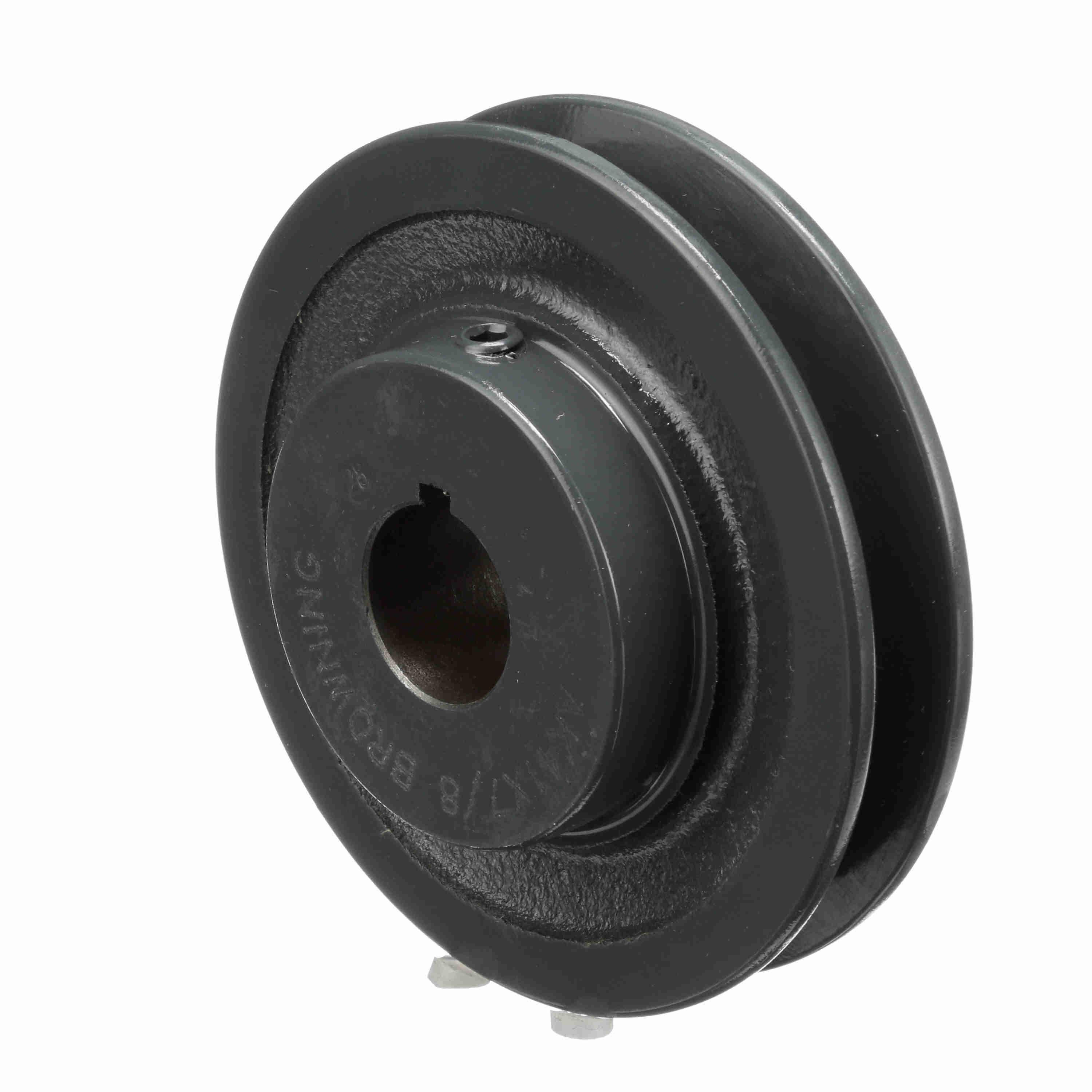

Browning® 1042969 BK Series Type 1 FHP Sheave, 3/8 to 1-1/2 in Split Taper Bore, 3.55 in OD, 2 Grooves, 3 in (A)/3-1/2 in (B) Dia Pitch, 1-3/4 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289282715
-
Manufacturer Part Number1042969
-
CountryUSA
-
Face Width1-3/4 in
-
Bushing TypeH
-
Pitch Diameter3 in (A)/3-1/2 in (B)
-
MaterialCast Iron
-
TypeType 1
-
SeriesBK Series
-
Hub Projection29/32 in
-
Number of Grooves2
-
Outside Diameter3.55 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length2-21/32 in
-
Suitable For Use WithClassical Gripbelt® 4L/A and 5L/B Cross Section Belts
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100783614 |
| Motion Industries | 00728465 |
-
Alternative Part Number2BK34H
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
