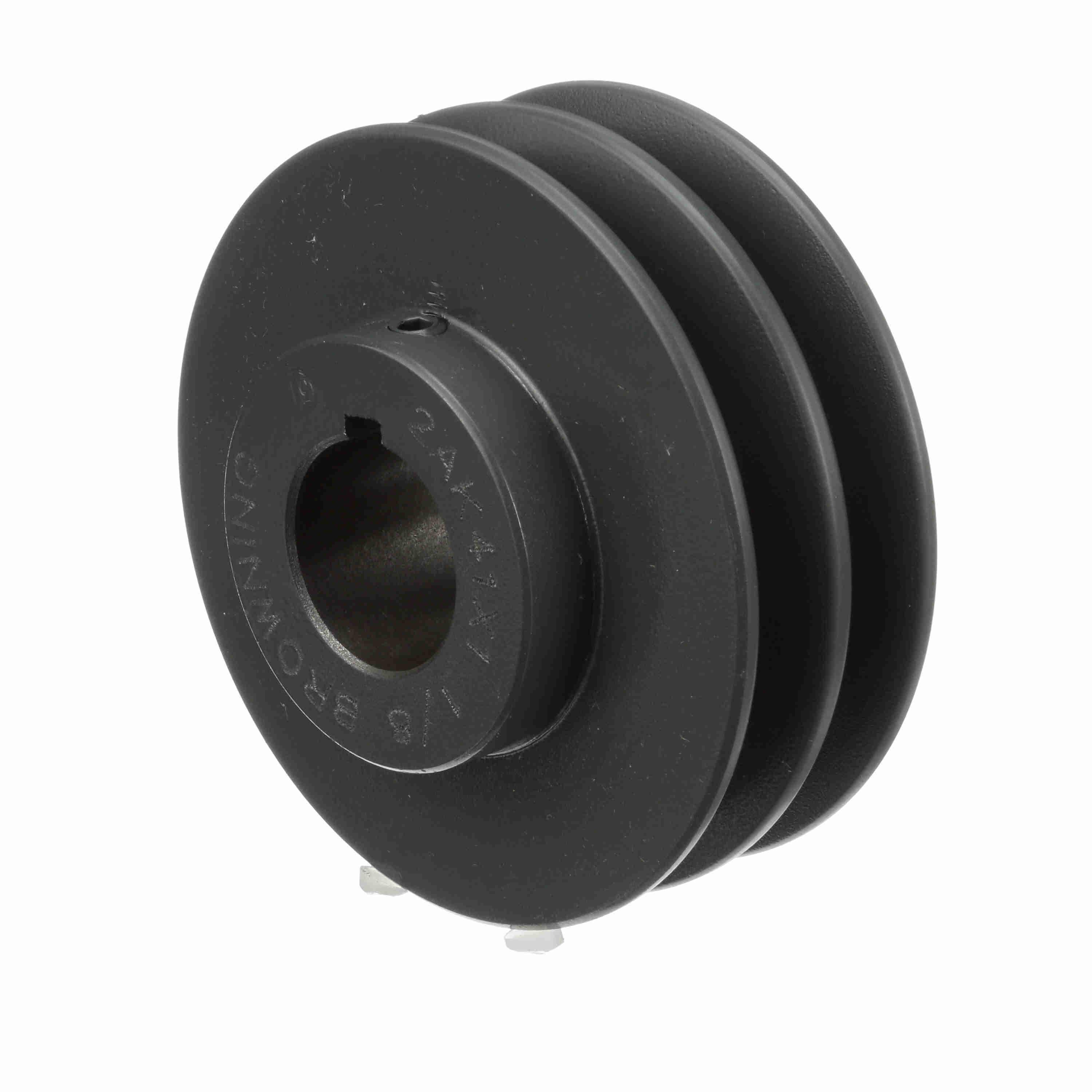

Browning® 1032267 AK Series Type 2 FHP Sheave, 1-1/8 in Finished Bore, 3.95 in OD, 2 Grooves, 3.9 in (A)/3.36 in (3L) Dia Pitch, 1-3/8 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289150137
-
Manufacturer Part Number1032267
-
CountryUSA
-
Face Width1-3/8 in
-
Pitch Diameter3.9 in (A)/3.36 in (3L)
-
MaterialCast Iron
-
TypeType 2
-
SeriesAK Series
-
Hub Projection15/32 in
-
Number of Grooves2
-
Outside Diameter3.95 in
-
Bore Diameter1-1/8 in
-
Bore TypeFinished
-
Overall Length1-27/32 in
-
Suitable For Use WithA and 3L Cross Section Belts
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
-
Alternative Part Number2AK41X 1 1/8
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
