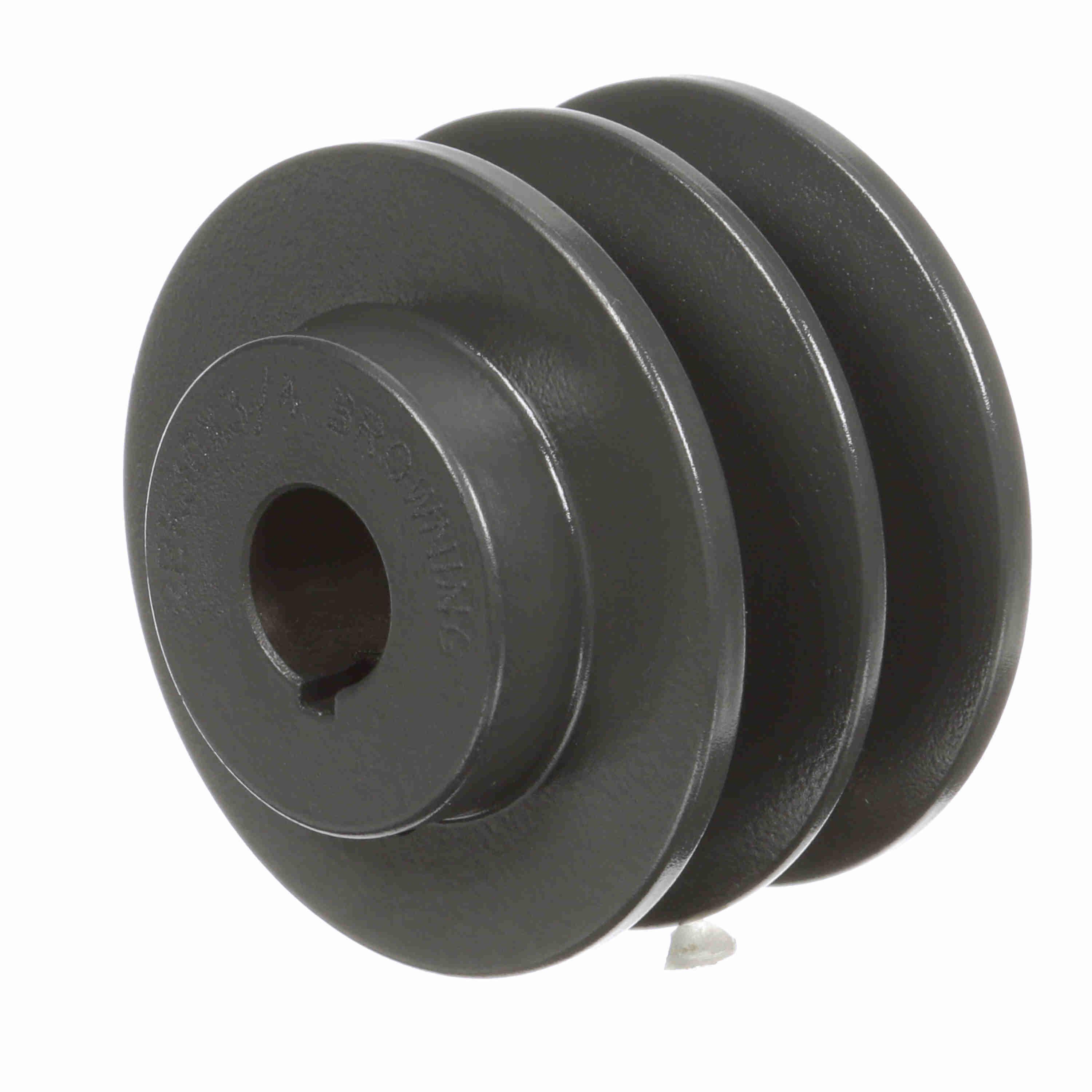

Browning® 1033182 BK Series Type 1 FHP Sheave, 3/4 in Finished Bore, 3.15 in OD, 2 Grooves, 2.6 in (A)/3.1 in (B) Dia Pitch, 1-3/4 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289120949
-
Manufacturer Part Number1033182
-
CountryUSA
-
Face Width1-3/4 in
-
Pitch Diameter2.6 in (A)/3.1 in (B)
-
MaterialCast Iron
-
TypeType 1
-
SeriesBK Series
-
Hub Projection15/32 in
-
Number of Grooves2
-
Outside Diameter3.15 in
-
Bore Diameter3/4 in
-
Bore TypeFinished
-
Overall Length2-7/32 in
-
Suitable For Use WithAB Cross Section V-Belts
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
-
Alternative Part Number2BK30X3/4
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
