Gates® Power Transmission PowerGrip® HTD® P52-20M-115 Solid Sprocket, 1-1/2 to 4-1/2 in QD® Bore, 12.863 in OD, 52 Grooves, 13.033 in Dia Pitch, 5 in W Face

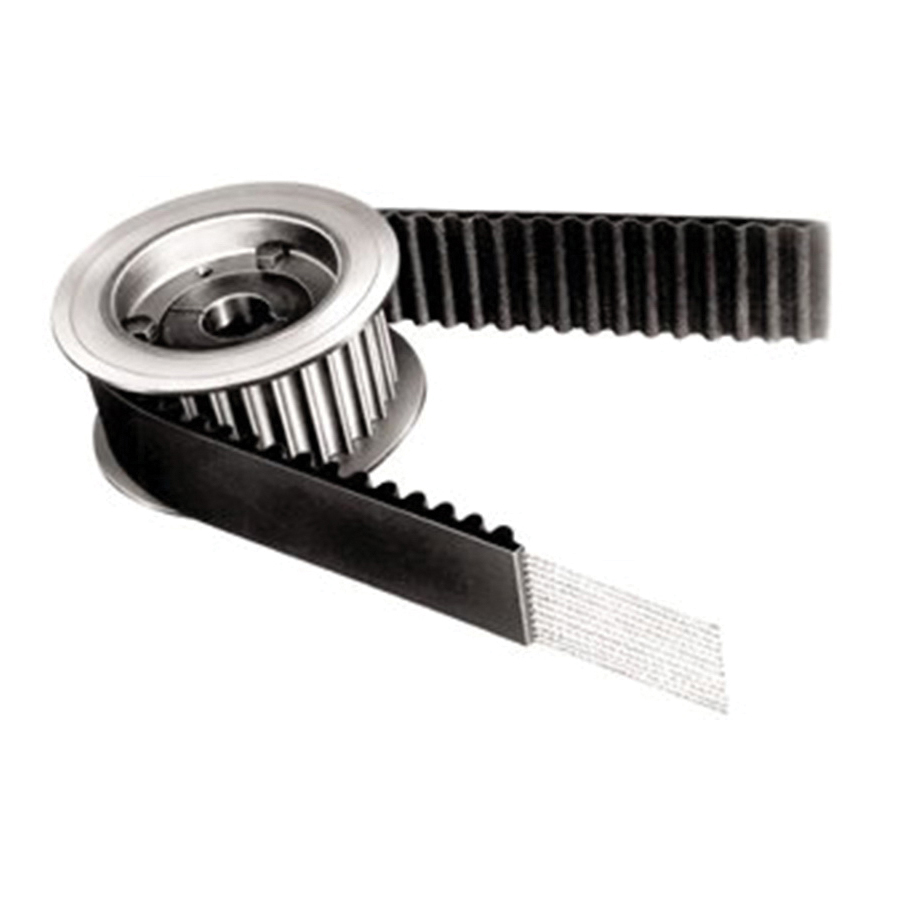

PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.
-
BrandGates® Power Transmission
-
UPC072053126969
-
Manufacturer Part NumberP52-20M-115
-
CountryUSA
-
Face Width5 in
-
Bushing TypeJ
-
Pitch20 mm
-
Pitch Diameter13.033 in
-
MaterialCast Iron
-
Flange Diameter13-3/4 in
-
TypeSolid
-
Series7882
-
Number of Grooves52
-
Outside Diameter12.863 in
-
Bore Diameter1-1/2 to 4-1/2 in
-
Bore TypeQD®
-
Overall Length5.76 in
-
Suitable For Use WithPowerGrip® HTD® Belts
- Full split in bushing allows easy installation and removal
- Precise sprocket design produces positive, press fit to shaft
- Precision manufactured and static balanced to eliminate sprocket wobble
-
Alternative Part Number78824040
-
UNSPSC31171900
-
Package DescriptionEACH
-
