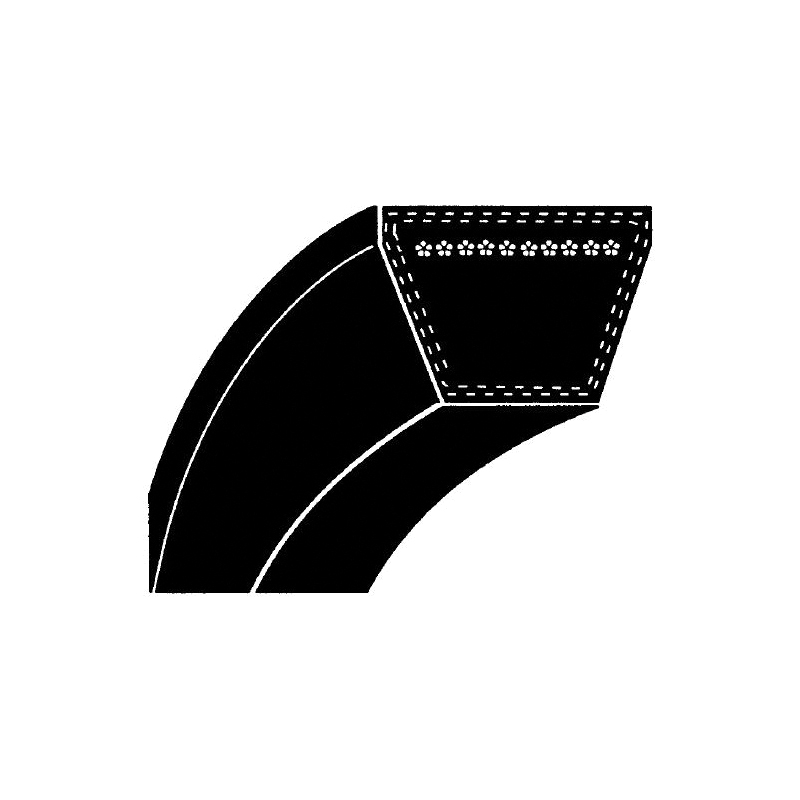

Gates 5-VP-1120 Predator® Industrial V-Belts - 5V Section, 5/8 in Top Width, 1 Strand, 112.0000 in Nominal Outside Length, Smooth
Made to take on your toughest jobs, Predator Single & PowerBand banded belts are the market leading heavy duty V-belts. The stronger than steel extra heavy-duty belt construction is designed to handle high horsepower motors, frequent shock loads, high heat and the harshest operating environments in extremely demanding applications. They provide extraordinary high-impact strength, capacity and wear resistance. Unique in their extreme robustness and high load carrying capability, they are unrivaled.
-
BrandGates® Power Transmission
-
UPC770075135364
-
Manufacturer Part Number5VP1120
-
CountryUSA|Canada
-
Temperature Range-30 to 180 deg F
-
Thickness35/64 in
-
MaterialChloroprene
-
Top Width5/8 in
-
Reinforced MaterialAramid
-
ColorBrown
-
TypeHeavy Duty
-
Minimum Pulley Diameter7.1 in
-
Section Size5VP
-
Number of Ribs1
-
Outside Length112 in
-
Series9188
- Bareback cover resists debris and allows the belt to slip under extreme shock load conditions, reducing heat buildup and prolonging belt life
- Aramid tensile cords combine limited stretch with extraordinary strength and durability that is pound-for-pound stronger than steel
- Gates® curves provide proper cord support and full contact with the sheave groove for equal loading, uniform wear and increased belt life
- Chloroprene rubber compounds provide superb oil and heat resistance
- Specially-treated extra tough cover withstands slip and shear forces at peak loads without generating excessive heat
- Fewer belts needed resulting in less overhung load on bearings
- Reduced downtime and increased efficiency
-
UNSPSC26111801
-
Standards/ApprovalsARPM/RMA IP-3-2
-
Alternative Part Number91880112
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
