Gates V-BELTS GAT 8-V-1500
Combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. Transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC™ V-belts also have exclusive Gates construction features for longer life on your drives.
-
BrandGates® Power Transmission
-
UPC72053016604
-
Manufacturer Part Number8V1500
-
CountryUSA|Canada
-
Temperature Range-30 to 180 deg F
-
Thickness7/8 in
-
MaterialChloroprene
-
Top Width1 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeBanded Heavy Duty
-
Minimum Pulley Diameter15.916 in
-

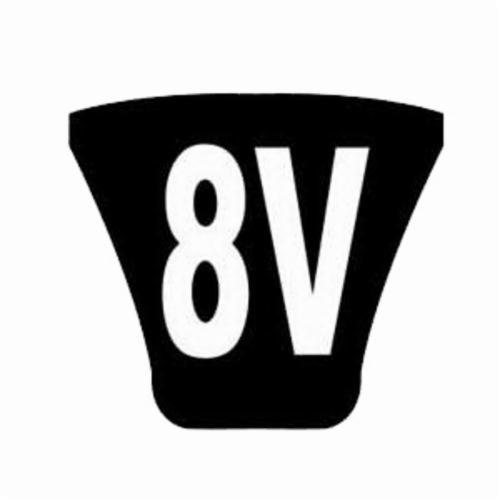

Section Size8V
-
Series9336
-
Number of Ribs1
-
Outside Length150 in
- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
| Competitor Name | Cross-Reference Number |
|---|---|
| Motion Industries | 00677204 |
-
Alternative Part Number93361500
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
