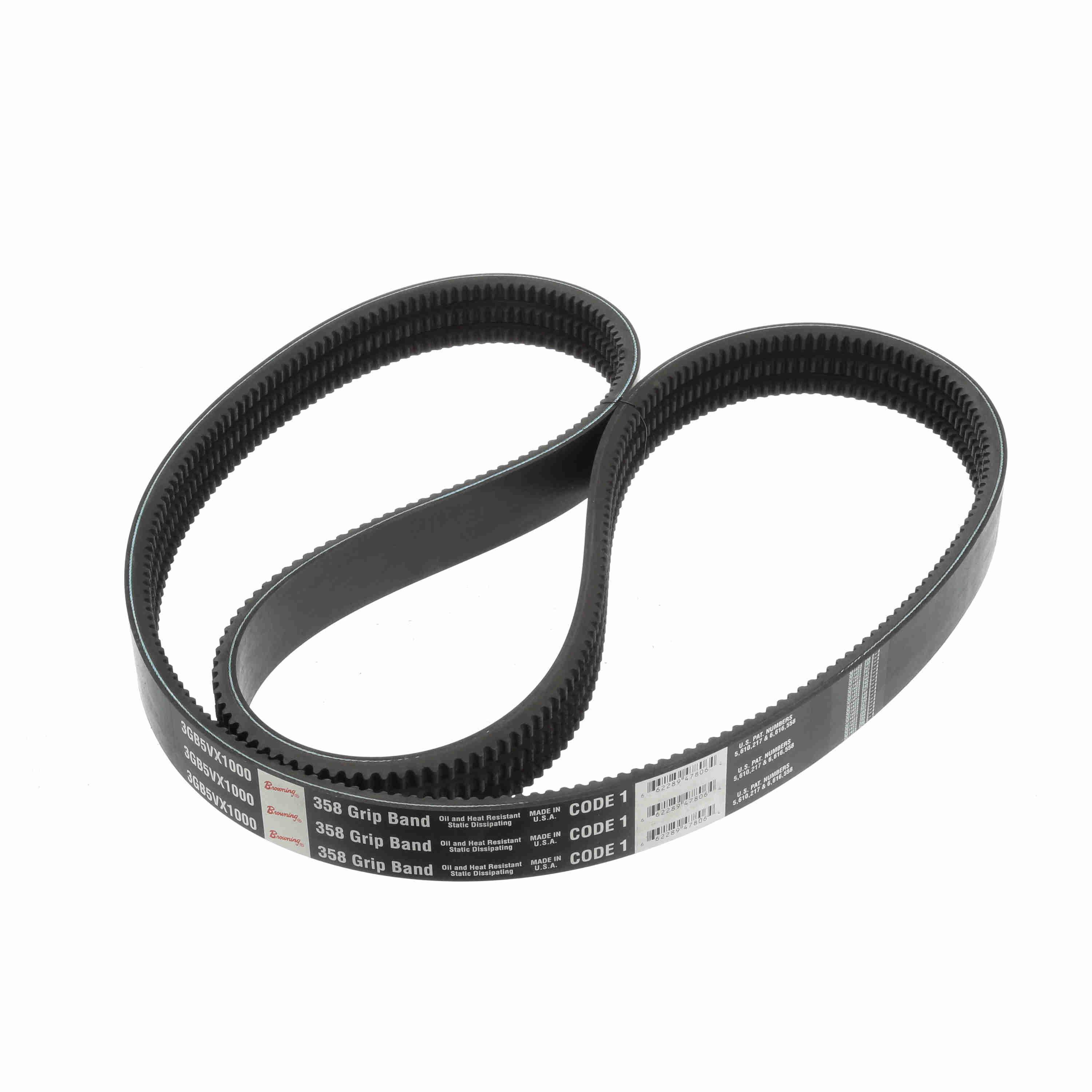

Browning® Gripband® 3080140 Cogged V-Belt, 5VX Section, 5/8 in W Top, 80 in L Outside, 17/32 in THK, Neoprene
Browning® Gripband® 3080140 Cogged V-Belt, 5VX Section, 5/8 in W Top, 80 in L Outside, 17/32 in THK, Neoprene
-
BrandBrowning®
-
UPC662289478026
-
Manufacturer Part Number3080140
-
CountryUSA
-
Temperature Range250 deg F
-
Thickness17/32 in
-
MaterialNeoprene
-
Top Width5/8 in
-
Reinforced MaterialPolyester
-
TypeCogged
-
Section Size5VX
-
Number of Ribs3
-
Outside Length80 in
- The banding material aids in preventing material from getting between the sheave and belts
- Oil and heat resistant
- Multiple V-belts in single unit construction
- Ideal for Pulsing loads - All Browning Banded Belts provide the belt solution for pulsing/shock loads and the demands of the aggregate industry
- Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today
- One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- Eliminates the possibility of belt turnover on narrow and long centers - Banded Belts assure all belts within the drive run in uniformity to the sheaves without any possibility of belt turnover, even when centers are very long
-
Alternative Part Number3GB5VX800
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
