Gates® Power Transmission Super HC® Molded Notch PowerBand® 4/5VX850 Heavy Duty Molded Notch V-Belt, 5VX Section, 5/8 in W Top, 85 in L Outside, 35/64 in THK, EPDM
When your power transmission application needs a high horsepower solution but is constrained by drive weight or physical space, the answer is Super HC™ Molded Notch belts. Our proprietary ethylene construction process provides a superior combination of flex and load-carrying capacity, transmitting up to three times the horsepower versus comparably sized belts. Super HC MN V-belts put more power where high speeds, high speed ratios or small pulley diameters are required, offering significant benefits over classical section V-belts.
-
BrandGates® Power Transmission
-
UPC72053278064
-
Manufacturer Part Number4/5VX850
-
CountryUSA|Canada
-
Temperature Range-60 to 250 deg F
-
Thickness35/64 in
-
MaterialEPDM
-
Top Width5/8 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeHeavy Duty Molded Notch
-
Minimum Pulley Diameter7.958 in
-
Section Size5VX
-
Series9389
-
Number of Ribs4
-
Outside Length85 in

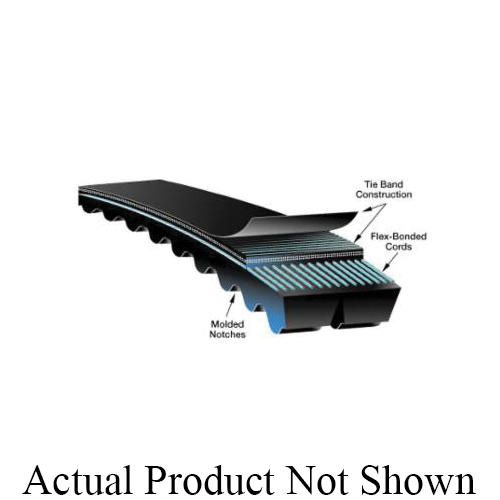

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
- The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
- Patented ethylene material construction provides -60 to 250 deg F temperature range to resist belt cracking
-
Alternative Part Number93894085
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
