Gates® Power Transmission Super HC® PowerBand® 4/5V1000 Banded Heavy Duty V-Belt, 5V Section, 5/8 in W Top, 100 in L Outside, 35/64 in THK, Chloroprene
Combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. Transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC™ V-belts also have exclusive Gates construction features for longer life on your drives.
-
BrandGates® Power Transmission
-
UPC72053278101
-
Manufacturer Part Number4/5V1000
-
CountryUSA|Canada
-
Temperature Range-30 to 180 deg F
-
Thickness35/64 in
-
MaterialChloroprene
-
Top Width5/8 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeBanded Heavy Duty
-
Minimum Pulley Diameter7.958 in
-
Section Size5V
-
Series9386
-
Number of Ribs4
-
Outside Length100 in

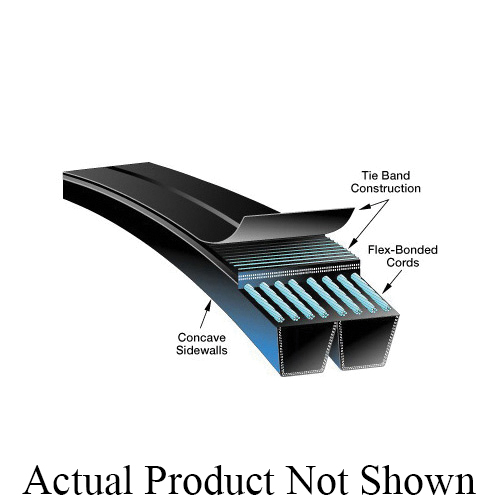

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
- Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
-
Alternative Part Number93864100
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
