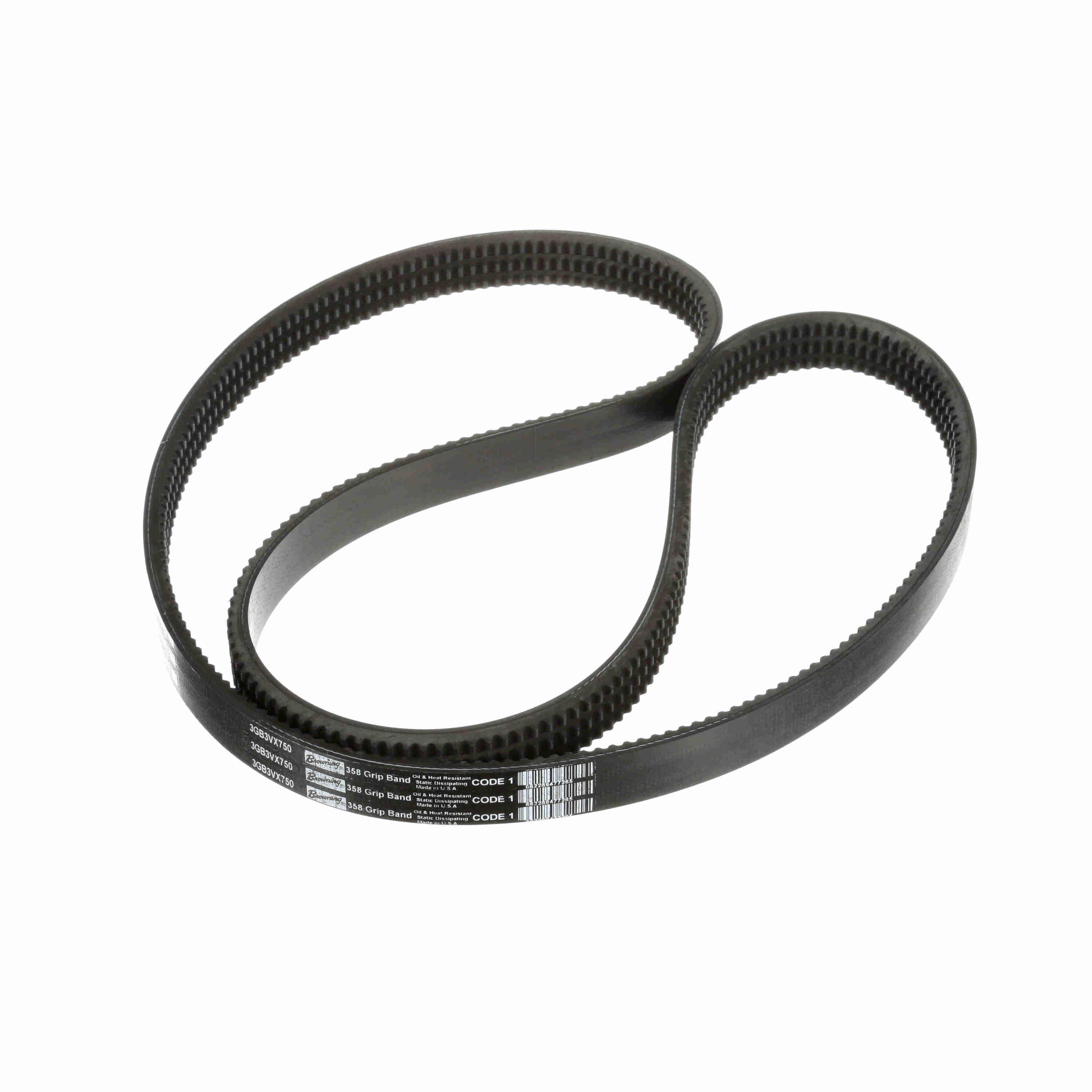

Browning® Gripband® 3079621 Cogged V-Belt, 3VX Section, 3/8 in W Top, 75 in L Outside, 15/16 in THK, Neoprene
Browning® Gripband® 3079621 Cogged V-Belt, 3VX Section, 3/8 in W Top, 75 in L Outside, 15/16 in THK, Neoprene
-
BrandBrowning®
-
UPC662289477265
-
Manufacturer Part Number3079621
-
CountryUSA
-
Temperature Range250 deg F
-
Thickness15/16 in
-
MaterialNeoprene
-
Top Width3/8 in
-
Reinforced MaterialPolyester
-
TypeCogged
-
Section Size3VX
-
Number of Ribs3
-
Outside Length75 in
- Ideal for pulsing loads
- Eliminates the possibility of belt turnover on narrow and long centers banded belts assure all belts within the drive run in uniformity to the sheaves without any possibility of belt turnover even when centers are very long
- All Browning® banded belts provide the belt solution for pulsing/shock loads and the demands of the aggregate industry
- The banding material aids in preventing material from getting between the sheave and belts
- Oil and heat resistant
- Multiple V-belts in single unit construction
- Notched construction
-
Alternative Part Number3GB3VX750
-
UNSPSC26111801
-
Package Description1/PK
-
Standards/ApprovalsRMA Standard
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
