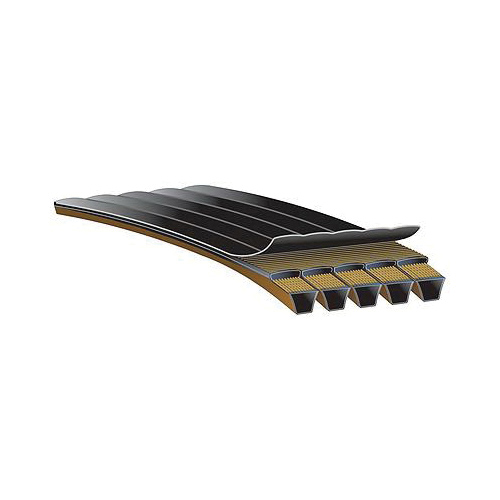

Gates® Power Transmission Micro-V® 490J6 Heavy Duty V-Belt, J Section, 3/32 in W Top, 49 in L Outside, 5/32 in THK, Chloroprene
Gates Micro-V® belts ensure outstanding performance on any industrial multi-ribbed drive. They cover a multitude of industrial applications and are suitable for industrial drives in washing machines, textile machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more. Exclusive truncated (shortened) profile gives Gates Micro-V belts increased flexibility, reduced heat buildup and allows performance at higher speeds on smaller diameter sheaves. The full line of Micro-V belt products includes slabs in several widths as well as single belts in J, K, L and M sections in order to perfectly match customer requirements.
-
BrandGates® Power Transmission
-
UPC72053296662
-
Manufacturer Part Number490J6
-
CountryUSA|Canada
-
Temperature Range-30 to 180 deg F
-
Thickness5/32 in
-
MaterialChloroprene
-
Top Width3/32 in
-
Reinforced MaterialPolyester
-
TypeHeavy Duty
-
Section SizeJ
-
Series9171
-
Number of Ribs6
-
Outside Length49 in
-
Minimum Pulley Diameter3.183 in
- Fiber reinforced ribs for excellent wear resistance
- High modulus, low stretch tensile member for added strength and dependability
- Smooth running for minimal vibration at high speeds
- Oil and heat-resistant, static conductivity
- Specifically designed for high demand applications, the extra heavy duty belt construction provides extraordinary high impact strength, capacity and wear resistance
-
Alternative Part Number917104906
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
WarrantyLimited
-
