Gates 5-L-230 FHP V-BELTS GAT 3230
Engineered with all the qualities of a great belt, including flexibility, durability and resistance to contaminants. It includes a thin profile, designed for small-diameter sheaves and a lower cord positioning to improve belt performance on light-duty belt drives and in your backside idler applications.
-
BrandGates® Power Transmission
-
UPC72053007015
-
Manufacturer Part Number5L230
-
CountryUSA|Canada
-
Thickness3/8 in
-
MaterialEPDM
-
Top Width21/32 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeLight Duty Banded
-
Minimum Pulley Diameter4.775 in
-
Section Size5L
-
Series8400
-
Number of Ribs1
-
Outside Length23 in

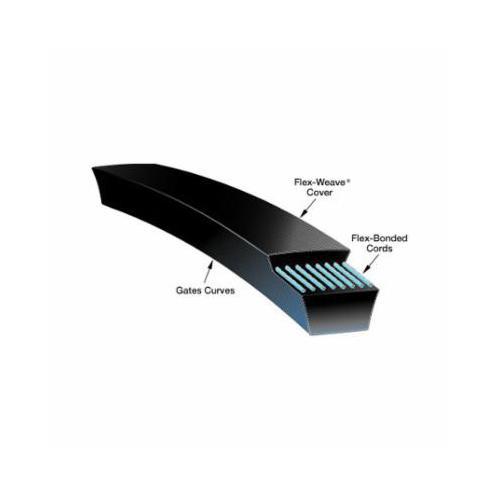

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
- Truflex® belts feature superior length stability for minimal take up requirements
-
Alternative Part Number84003230|3230
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
