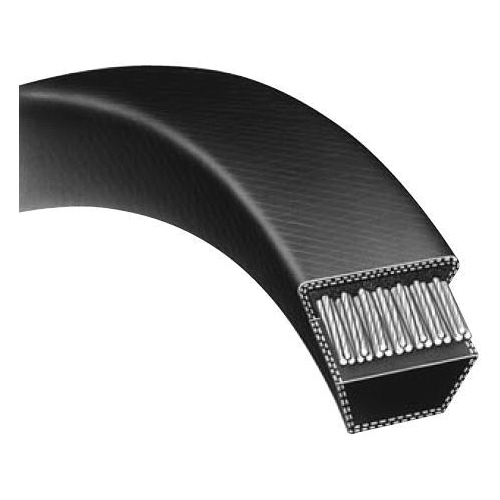

Bando Duraflex GL® 4L560 Light Duty High Speed Drive V-Belt, 4L Section, 1/2 in W Top, 56 in L Outside, 0.31 in THK, Neoprene
Duraflex GL® V-belts are specifically designed for shorter center distance, high-speed fractional horsepower drives. Common applications include HVAC equipment and appliances.
-
BrandBando
-
UPC649717445904
-
Manufacturer Part Number4L560
-
CountryUSA
-
Thickness0.31 in
-
MaterialNeoprene
-
Top Width1/2 in
-
Reinforced MaterialPolyester
-
TypeLight Duty High Speed Drive
-
Minimum Pulley Diameter2-1/2 in
-
Section Size4L
-
Outside Length56 in
- Oil, heat and ozone resistant bias cut, rubber impregnated fabric cover protects inner components for long life
- High strength polyester tensile cords provide maximum fatigue and stress resistance
- The cords are positioned, supported and protected by the insulation section for uniform load distribution
- The special rubber compound in the body of the belt is formulated to flex around small sheaves and dissipate heat build up to extend belt life
- Meets RMA standards for oil and heat resistance and static conductivity
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsRMA IP-23
-
Instruction/Installation Manual
-
Catalog
