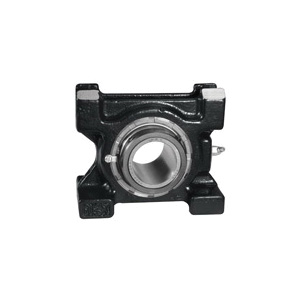

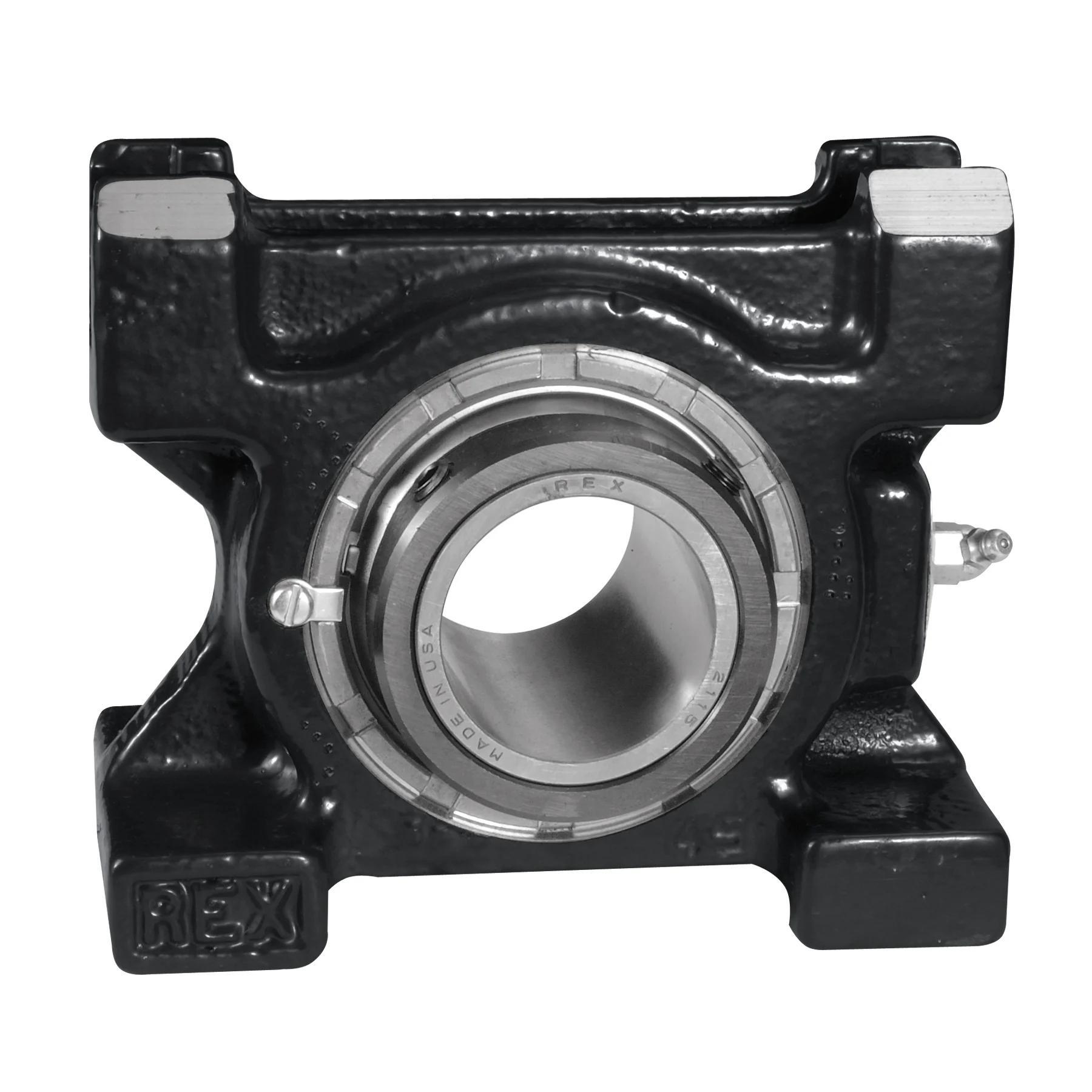

Rexnord 1-15/16"-ID TAKE-UP BEARING UNITS REX ZN-6-2115
Rex® 10437336 2000 Fixed Normal Duty Take-Up Spherical Roller Bearing Unit, 1-15/16 in Bore Dia, 6-3/16 in L x 3-1/8 in W x 4-1/2 in H, 28890 lb Dynamic/33200 lb Static Load
-
BrandRexnord®
-
UPC698210594244
-
Manufacturer Part Number10437336
-
CountryUSA|Canada
-
Load Capacity28890 lb Dynamic/33200 lb Static
-
Temperature Rating-40 to 400 deg F
-
FinishPowder Coated
-
TypeFixed Normal Duty
-
Height4-1/2 in
-
Width3-1/8 in
-
Series2000
-
Length6-3/16 in
-
Bore Diameter1-15/16 in
-
Suitable For Use WithProtected Screw Frame
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Simplest installation
- Most economical
- Type Z clearance seal
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Hardened spring single setscrew locking collar
- Size code 6
-
Alternative Part NumberZN62115
-
UNSPSC31171533
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
