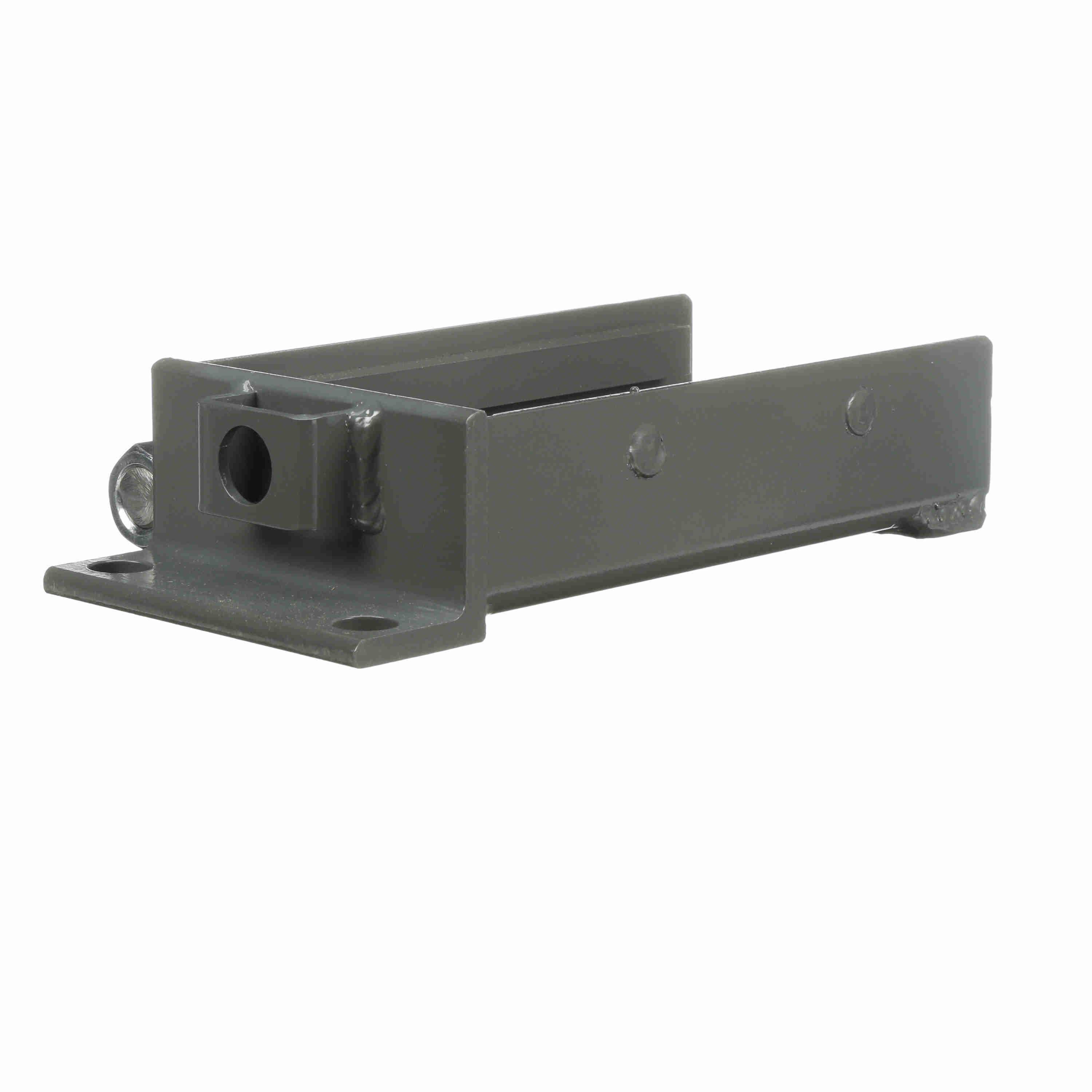

Browning® 3150976 SF Series Standard Duty Center Pull Take-Up Frame, 3 in Travel, 8-1/2 in OAL, 4-1/16 in W Base, 7-1/2 in L Bolt Center-to-Center, 3-3/16 in W Bolt Center-to-Center
Browning® 3150976 SF Series Standard Duty Center Pull Take-Up Frame, 3 in Travel, 8-1/2 in OAL, 4-1/16 in W Base, 7-1/2 in L Bolt Center-to-Center, 3-3/16 in W Bolt Center-to-Center
-
BrandBrowning®
-
UPC662289532209
-
Manufacturer Part Number3150976
-
CountryUSA
-
FinishUncoated
-
Frame TypeCenter Pull
-
Travel3 in
-
TypeStandard Duty
-
Height to Center Line1-3/8 in
-
SeriesSF Series
-
Base Width4-1/16 in
-
Bolt Center-to-Center Length7-1/2 in
-
Bolt Center-to-Center Width3-3/16 in
-
Overall Length8-1/2 in
- Positive contact molded nitrile rubber contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Browning® cast iron housing bearing units have a sticker with part description and brand washer under the lubrication fitting and allows for easy verification of the part number during installation and for replacement
- Durable painted welded steel construction
-
Alternative Part Number3SF16
-
UNSPSC31171533
-
Package DescriptionEACH
-
Warranty1 Year
-
