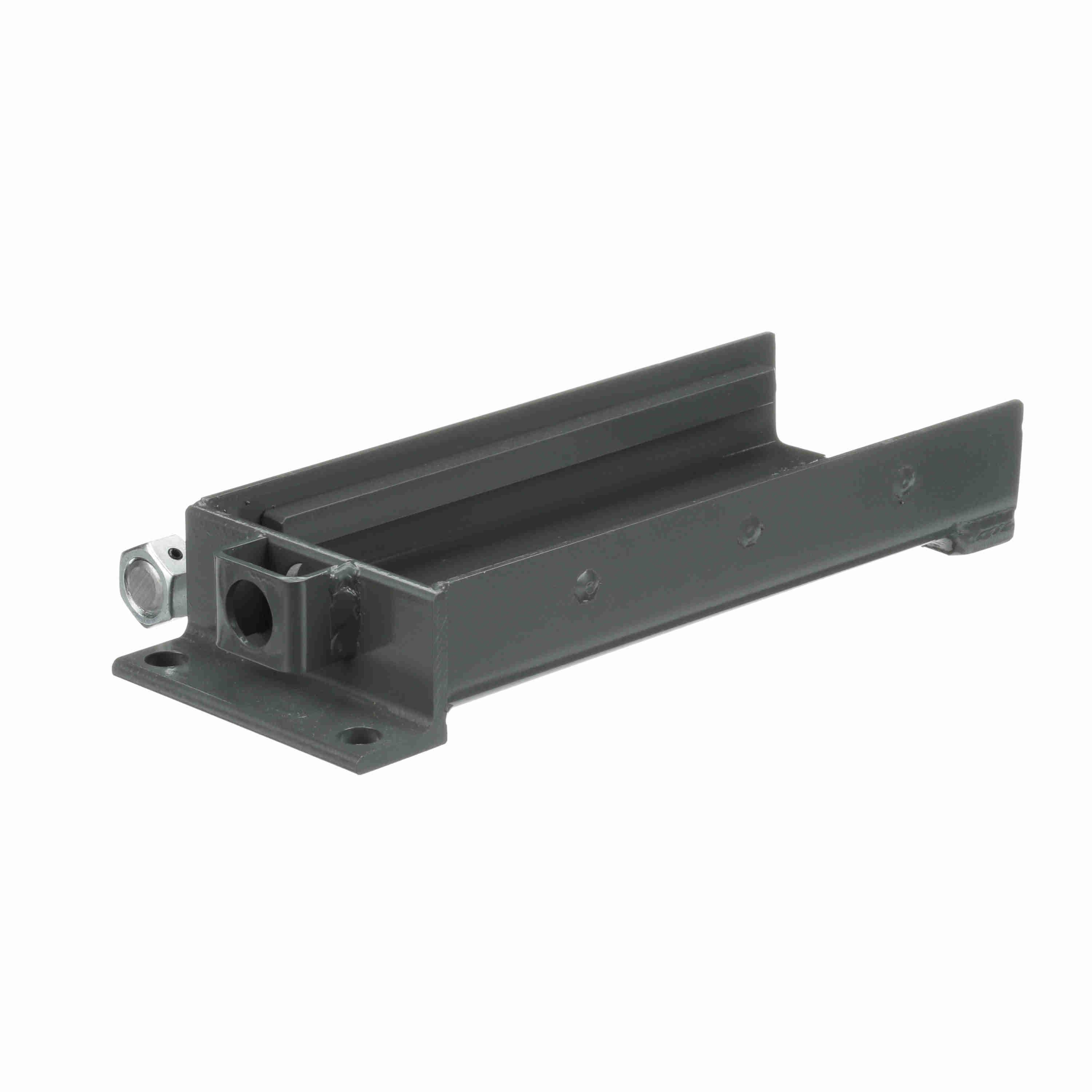

Browning 6" SIDE MOUNT TAKE-UP FRAMES BRW 6-SF-23
Browning® 3151016 SF Series Standard Duty Take-Up Frame, 6 in Travel, 12-3/8 in OAL, 11-3/8 in W Base, 11-3/8 in L Bolt Center-to-Center, 3-11/16 in W Bolt Center-to-Center
-
BrandBrowning®
-
UPC662289532254
-
Manufacturer Part Number3151016
-
CountryUSA
-
FinishPainted
-
MaterialWelded Steel
-
Frame TypeCenter Pull
-
Travel6 in
-
TypeStandard Duty
-
Height to Center Line1-3/8 in
-
SeriesSF Series
-
Base Width11-3/8 in
-
Bolt Center-to-Center Length11-3/8 in
-
Bolt Center-to-Center Width3-11/16 in
-
Overall Length12-3/8 in
- Durable painted welded steel construction
-
Alternative Part Number6SF23
-
UNSPSC31171533
-
Package DescriptionEACH
-
WarrantyLimited
-
