Fafnir BEARINGS FAF KP-6

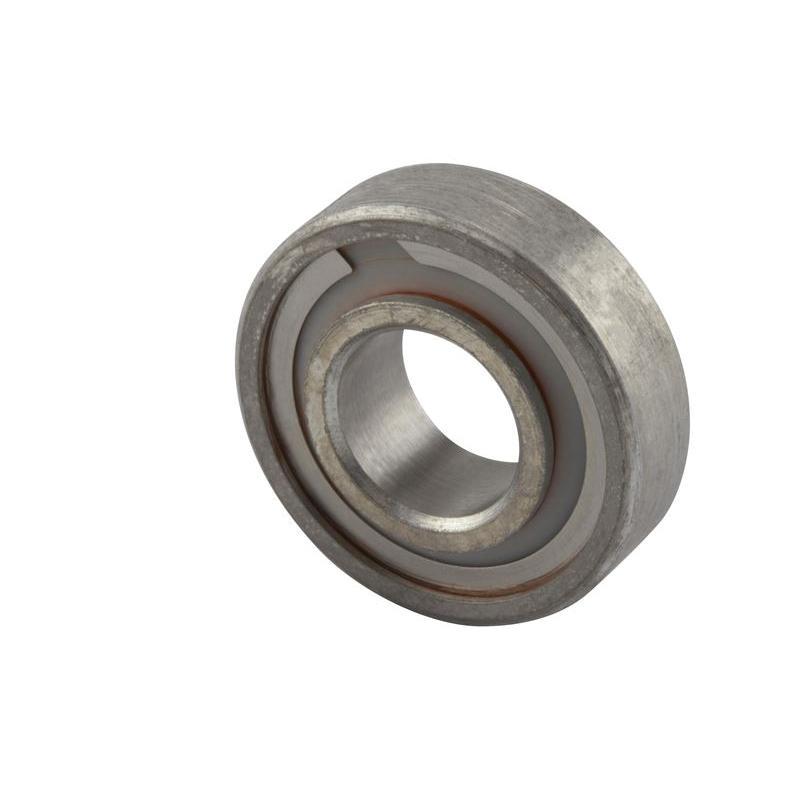

RBC® KP6FS428 KP Series Standard Airframe Bearing, Ball Bearing, 3/8 in Dia Bore, 1-7/16 in OD, 0.62 in W, 7910 lb Load
-
BrandRBC®
-
UPC637400552343
-
Manufacturer Part NumberKP6FS428
-
CountryUSA
-
Load Capacity7910 lb
-
Temperature Rating-65 to 250 deg F
-
FinishCadmium
-
TypeStandard
-
Seal MaterialPTFE
-
Width0.62 in
-
SeriesKP Series
-
Number of Rows1
-
Bearing Material52100 Steel
-
Bearing TypeBall
-
Outside Diameter1-7/16 in
-
Bore Diameter3/8 in
- Single row heavy duty airframe control ball bearing
- CRES seal caps
- Exposed surfaces except bore, caps and seals are cadmium plated
- Prelubricated for life
- This bearing is not intended for use in any aerospace application
- Contact seals
- Aeroshell 33® type 1 grease
- 7910 lb dynamic/7910 lb static
-
UNSPSC31171504
-
Package Description1/PK
-
Standards/ApprovalsABMA|ASPR|CAS|DFAR|FAR Standards|MIL-PRF-23827 Military Specification|NASC|SAE-AS27640|SAE AS7949
-
Warranty1 Year
-
