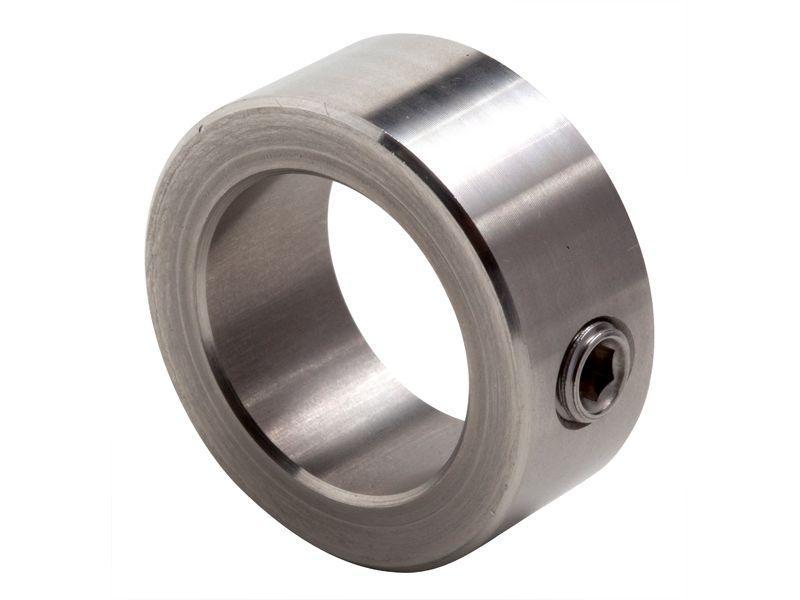

ASC-125-SS Setscrew Collar, 1-Piece Solid Construction, 1-1/4 in ID x 2 in OD x 11/16 in W, Stainless Steel
Stainless Steel Set Screw Collar. Traditional cost effective collar design.
-
BrandClimax
-
UPC044861634943
-
Manufacturer Part NumberGSC-125-SS
-
CountryUSA
-
FinishPlain
-
MaterialStainless Steel
-
Construction1-Piece Solid
-
Screw Size3/8-16 UN-3A x 3/8 in
-
Width11/16 in
-
SeriesGSC
-
Inside Diameter1-1/4 in
-
Outside Diameter2 in
- Requires disassembly of shaft components upon replacement
- Traditional cost effective collar design
- Economical design
- Single cup point set screw impinges the shaft
-
UNSPSC31162811
-
Package DescriptionEACH
-
Standards/ApprovalsASTM A582|ASTM F880 Setscrew
-
Specification Sheet
-
Line Drawing
-
Technical Bulletin
