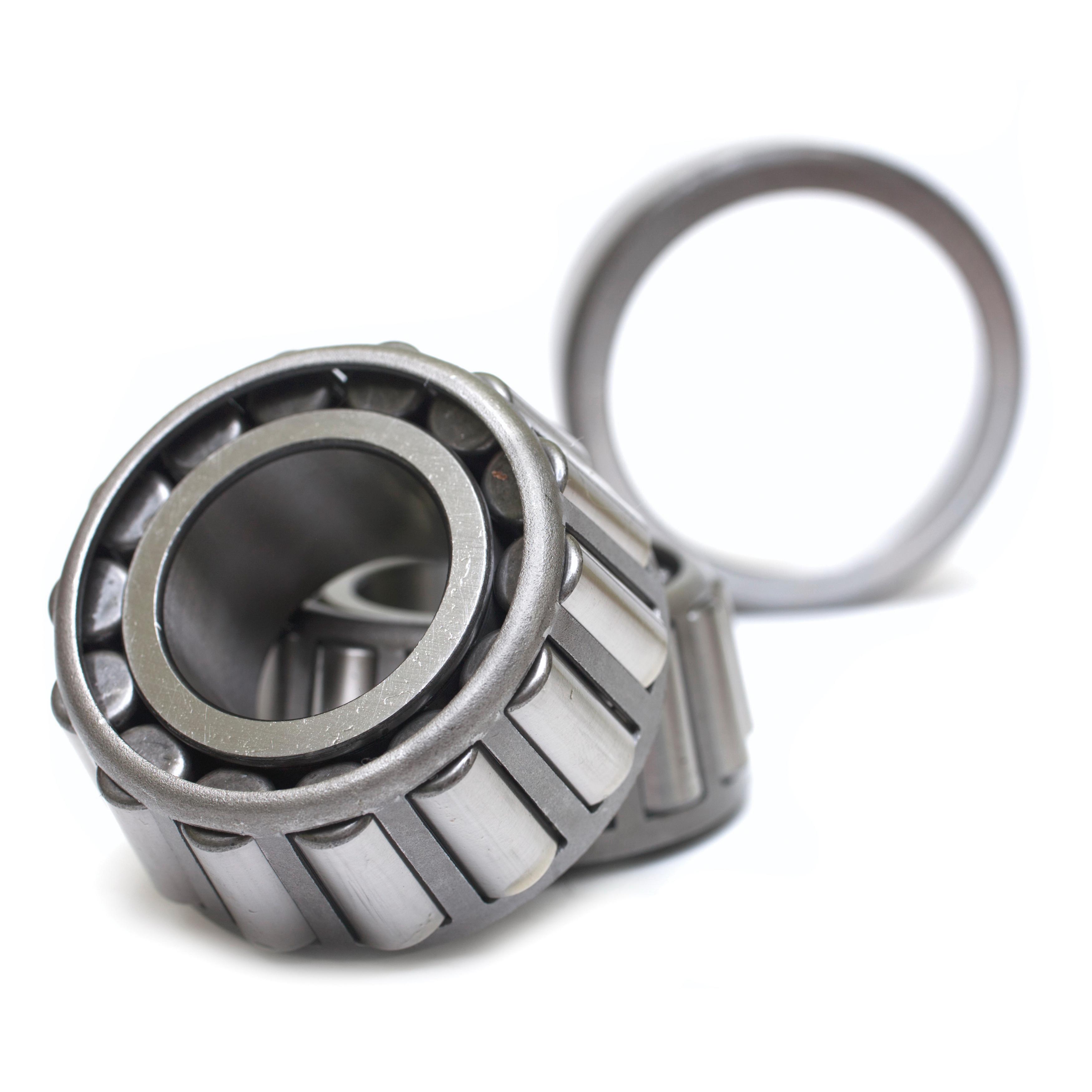

Koyo 30215JR Metric Series Caged Tapered Roller Bearing, 75 mm Dia Bore, 130 mm OD, 1 Row, 27.25 mm W, 142 kN Dynamic/181 kN Static Load
Tapered roller bearing are designed such that cup, cone and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis. Along with metric series bearing, inch series bearing are also available. This type of bearing is suitable for applications that involve heavy or impact loading.
-
BrandKoyo
-
UPC605790020063
-
Manufacturer Part Number30215JR
-
CountryUSA
-
Load Capacity142 kN Dynamic/181 kN Static
-
Cage MaterialPressed Steel
-
Maximum Speed2900 rpm Grease/3900 rpm Oil
-
TypeCaged
-
Width27.25 mm
-
SeriesMetric Series
-
Number of Rows1
-
Outside Diameter130 mm
-
Bore Diameter75 mm
- Ability to carry radial and axial load in one direction, because an axial component of force is produced when this type of bearing is loaded radially, two bearings are used together facing one another or two or more bearings are matched and used
- There are the standard, medium and steep type which are different in contact angle size, medium tapered metric series bearing are identified by the supplementary code "C" which is added as a suffix to bearing numbers
- Bearing whose cup width, cup small inside diameter and contact angle are determined in accordance with ISO 355 specifications are identified by the supplementary code "J" as suffix
-
UNSPSC31171505
-
Standards/ApprovalsABEC1 Class P0
-
