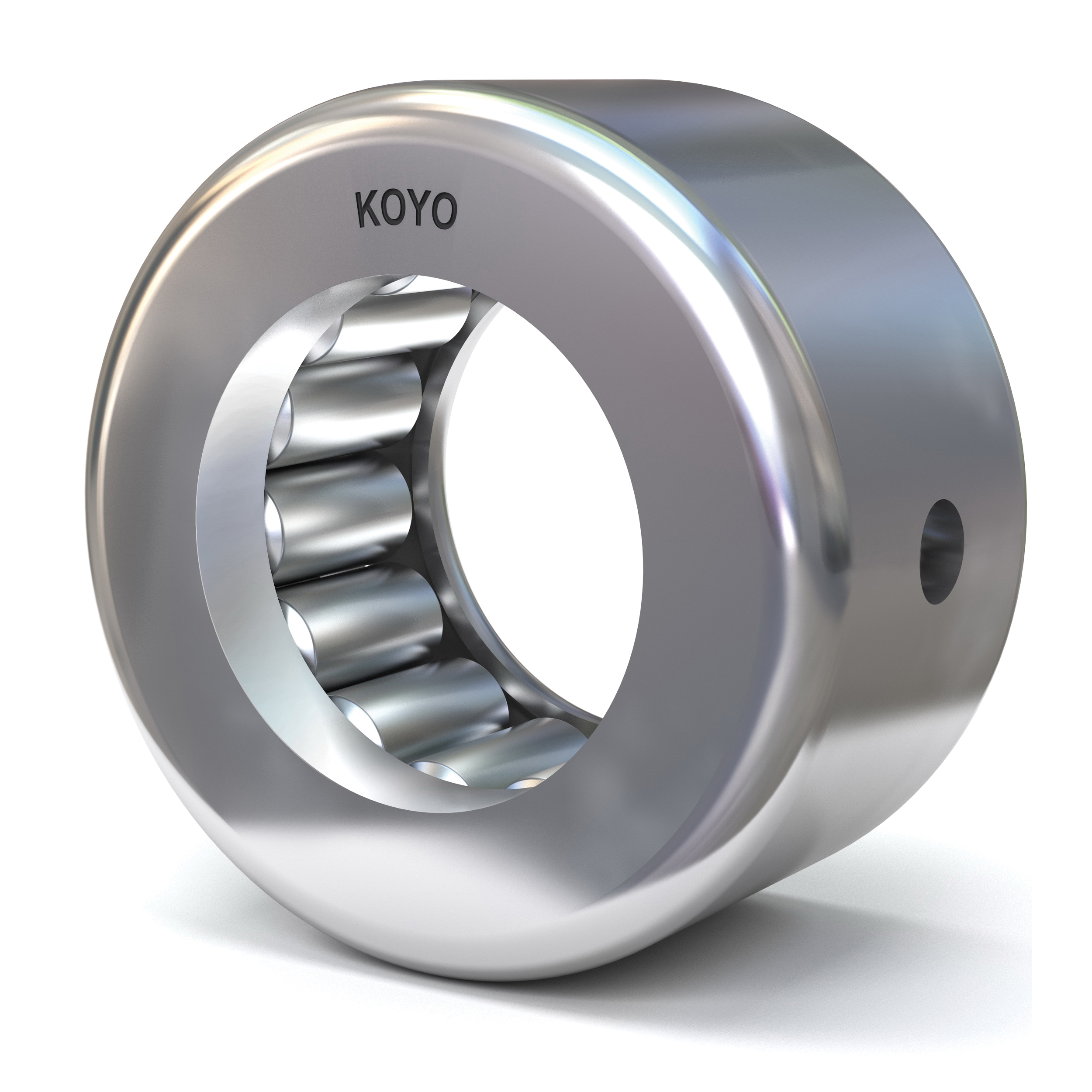

Koyo B-1416-OH Inch Series Open Ends Uncaged Drawn Cup Needle Roller Bearing With Oil Hole, 7/8 in Dia Bore, 1-1/8 in OD, 1 in W, 7100 lbf Dynamic/14570 lbf Static Load
Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearings are easily installed with a press fit in the housing.
-
BrandKoyo
-
UPC605790202797
-
Manufacturer Part NumberB-1416-OH
-
CountryUSA
-
Load Capacity7100 lbf Dynamic/14570 lbf Static
-
Temperature Rating250 deg F
-
Maximum Speed4800 rpm
-
Closure TypeOpen
-
TypeOpen Ends Uncaged
-
Width1 in
-
SeriesB Inch Series
-
Outside Diameter1-1/8 in
-
Bore Diameter7/8 in
- Full complement bearings handle high radial load-carrying capability
-
Alternative Part NumberB1416OHPBL125
-
UNSPSC31171505
-
Standards/ApprovalsANSI/ABMA 18.2
-
