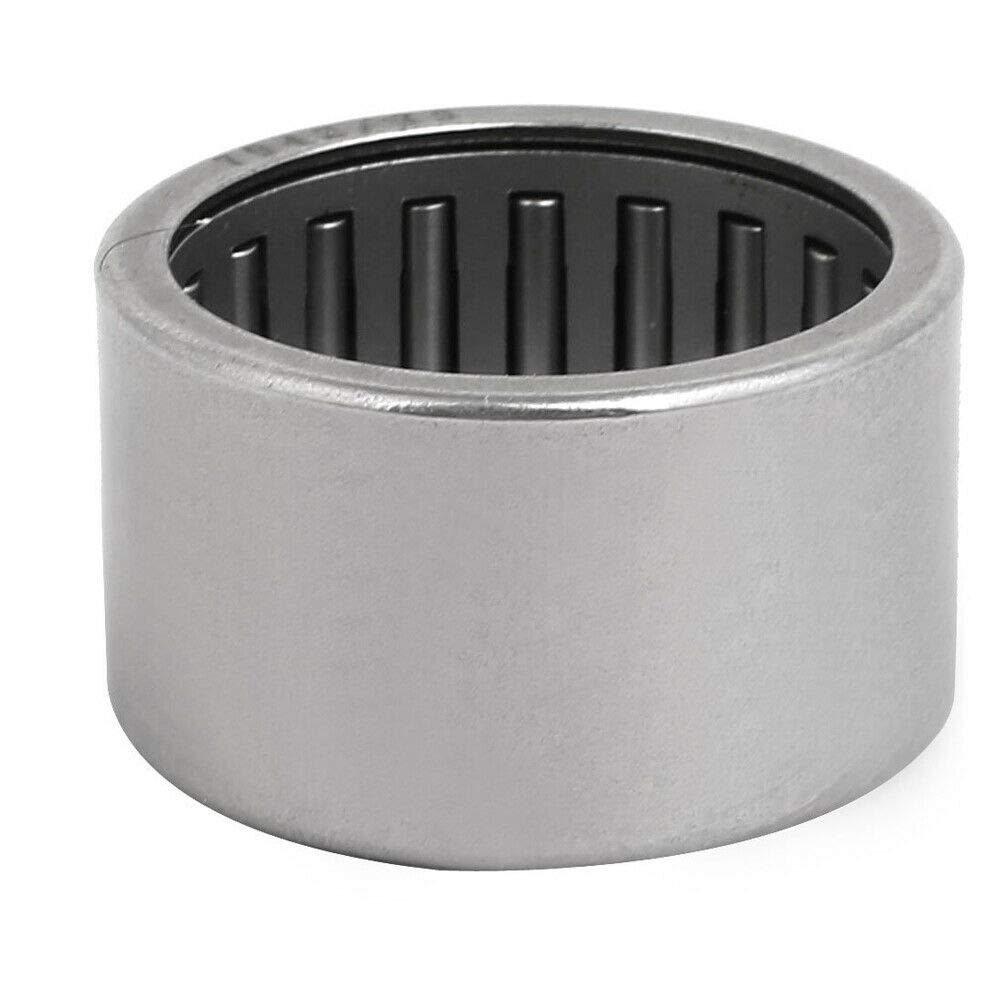

Koyo JT-129 JT Series Open End Drawn Cup Needle Roller Bearing, 3/4 in Dia Bore, 1 in OD, 9/16 in W, 2740 lb Load
Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway to the rollers. The small cross-section of the drawn cup bearing provides high load-carrying capability with minimum required space, drawn cup bearings are easily installed with a press fit in the housing.
-
BrandKoyo
-
UPC605790212888
-
Manufacturer Part NumberJT-129
-
CountryUSA
-
Load Capacity2740 lb
-
Cage MaterialSteel
-
Temperature Rating-25 to 225 deg F
-
Maximum Speed10000 rpm Grease
-
Closure TypeSealed
-
TypeOpen End
-
Width9/16 in
-
SeriesJT Series
-
Bearing MaterialSteel
-
Outside Diameter1 in
-
Bore Diameter3/4 in
- 2230 lb dynamic/2740 lb static load
- Full complement bearings handle high radial load carrying capability
- Caged bearings provide high speed and maximum lubricant retention capability
- Speed rating based on shaft contact speed of 610 m/min
- Reduce the listed speed rating by one-half for outer ring rotation
-
UNSPSC31171512
-
Standards/ApprovalsAISI/SAE 52100|ANSI/ABMA 18.1|JIS B 1536
-
