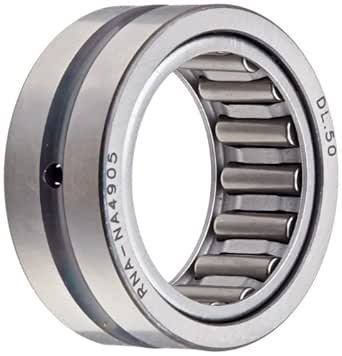

IKO Bearings 30-MM-ID NEEDLE BEARINGS W/O RACES IKO RNA-4905
IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.
-
BrandIKO
-
Manufacturer Part NumberRNA4905
-
CountryUSA
-
Load Capacity23700 N Dynamic/30700 N Static
-
Maximum Speed13000 rpm
-
Closure TypeOpen
-
TypeCaged Machined
-
Width17 mm
-
SeriesRNA49 Metric Series
-
Number of Rows1
-
Bearing MaterialHigh Carbon Steel
-
Outside Diameter42 mm
-
Bore Diameter30 mm
- Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
- Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
- Without inner ring
-
UNSPSC31171512
-
