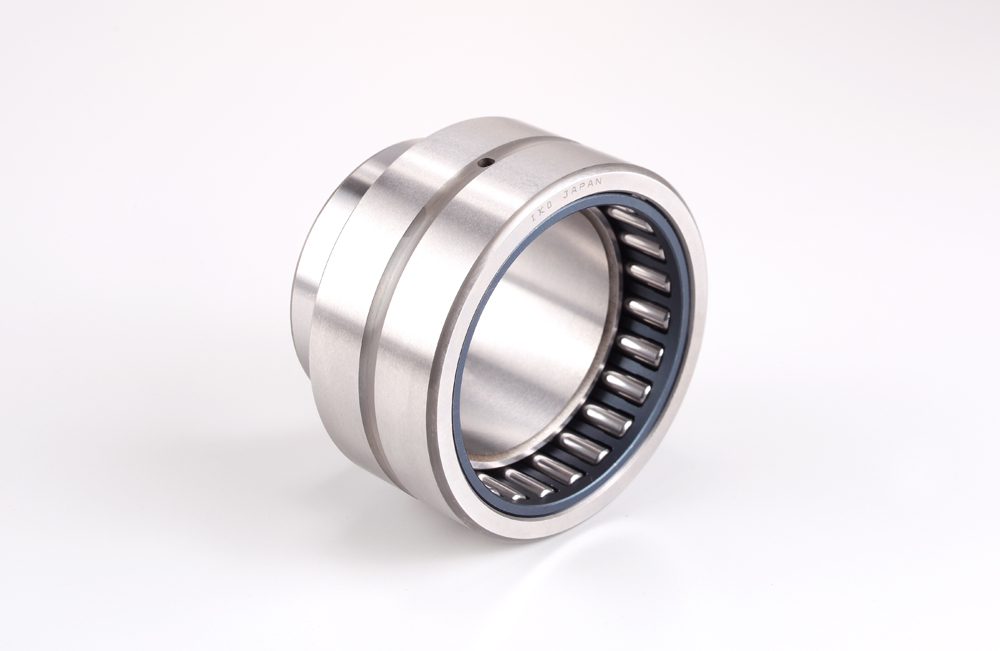

IKO RNA4904UU Metric Series Caged Machined Needle Roller Bearing With Oil Hole, 25 mm Dia Bore, 37 mm OD, 1 Row, 17 mm W, 18000 N Dynamic/20500 N Static Load
IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.
-
BrandIKO
-
Manufacturer Part NumberRNA4904UU
-
CountryUSA
-
Load Capacity18000 N Dynamic/20500 N Static
-
Maximum Speed7500 rpm
-
Closure TypeDouble Seal
-
TypeCaged Machined
-
Seal MaterialSynthetic Rubber
-
Width17 mm
-
SeriesRNA49 Metric Series
-
Number of Rows1
-
Bearing MaterialHigh Carbon Steel
-
Outside Diameter37 mm
-
Bore Diameter25 mm
- Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
- Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
- With seals on both side
- Without inner ring
- Pre-packed grease
-
UNSPSC31171512
-
