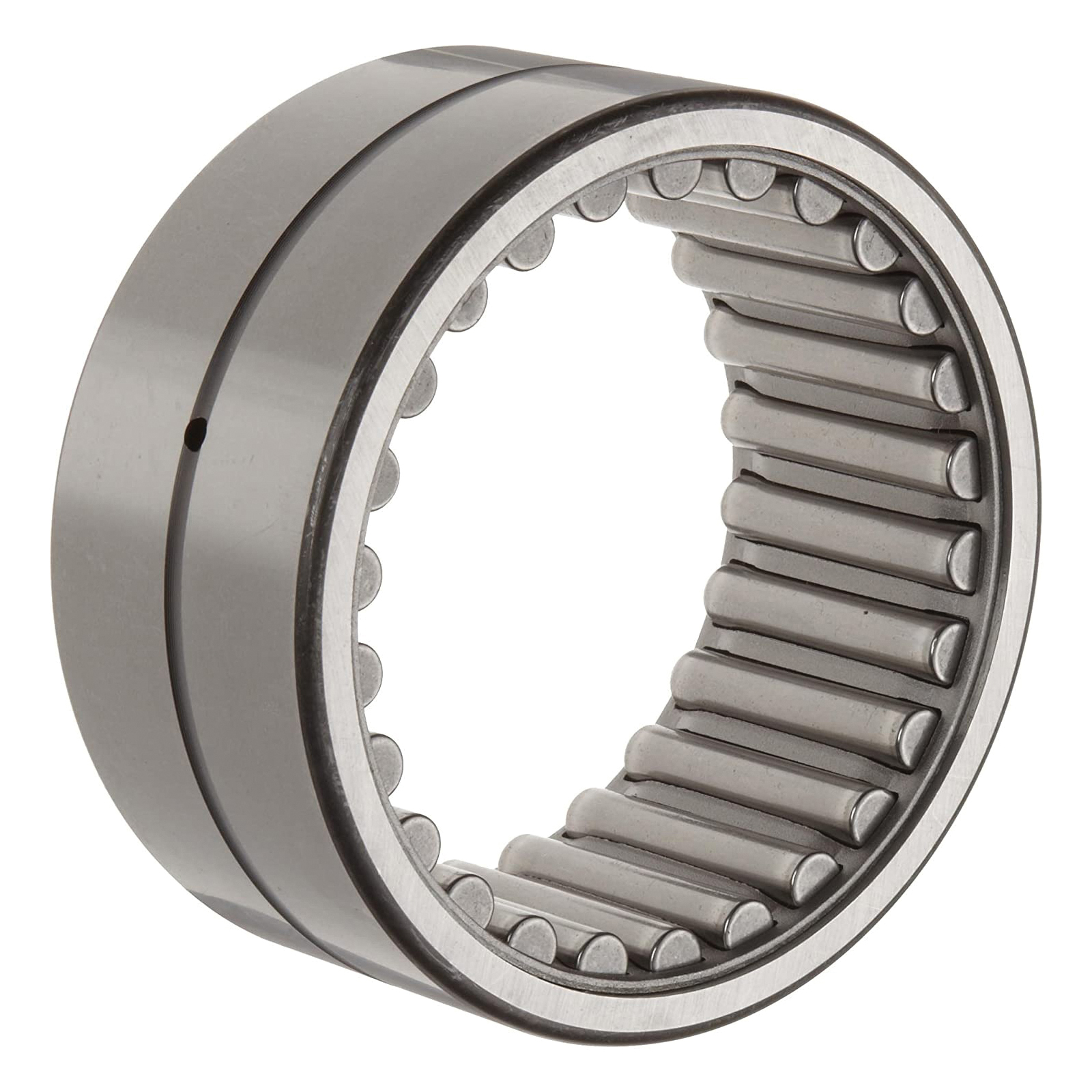

Koyo HJ-182616 Inch Series Caged Heavy Duty Needle Roller Bearing, 1-1/8 in Dia Bore, 1-5/8 in OD, 1 in W, 8170 lbf Dynamic/12100 lbf Static Load
Heavy duty needle roller bearings consists of a machined and ground channel-shaped outer ring with a complement of needle rollers and a cage. The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication. These bearings can be used with or without machined and ground inner ring, depending on the suitability of the shaft as a raceway surface.
-
BrandKoyo
-
UPC605790195150
-
Manufacturer Part NumberHJ-182616
-
CountryUSA
-
Load Capacity8170 lbf Dynamic/12100 lbf Static
-
Cage MaterialSteel
-
Temperature Rating250 deg F
-
Maximum Speed10000 rpm Grease/16000 rpm Oil
-
Closure TypeOpen
-
TypeCaged Heavy Duty
-
Width1 in
-
SeriesHJ Inch Series
-
Outside Diameter1-5/8 in
-
Bore Diameter1-1/8 in
- Thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross section
- Optimum speed and lubrication-retention capability
- Without inner ring
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 779KD9 |
-
Alternative Part NumberHJ182616PBL125
-
UNSPSC31171505
-
Standards/ApprovalsANSI/ABMA 18.1|ASTM F2246|Military Standard MS 51961
-
