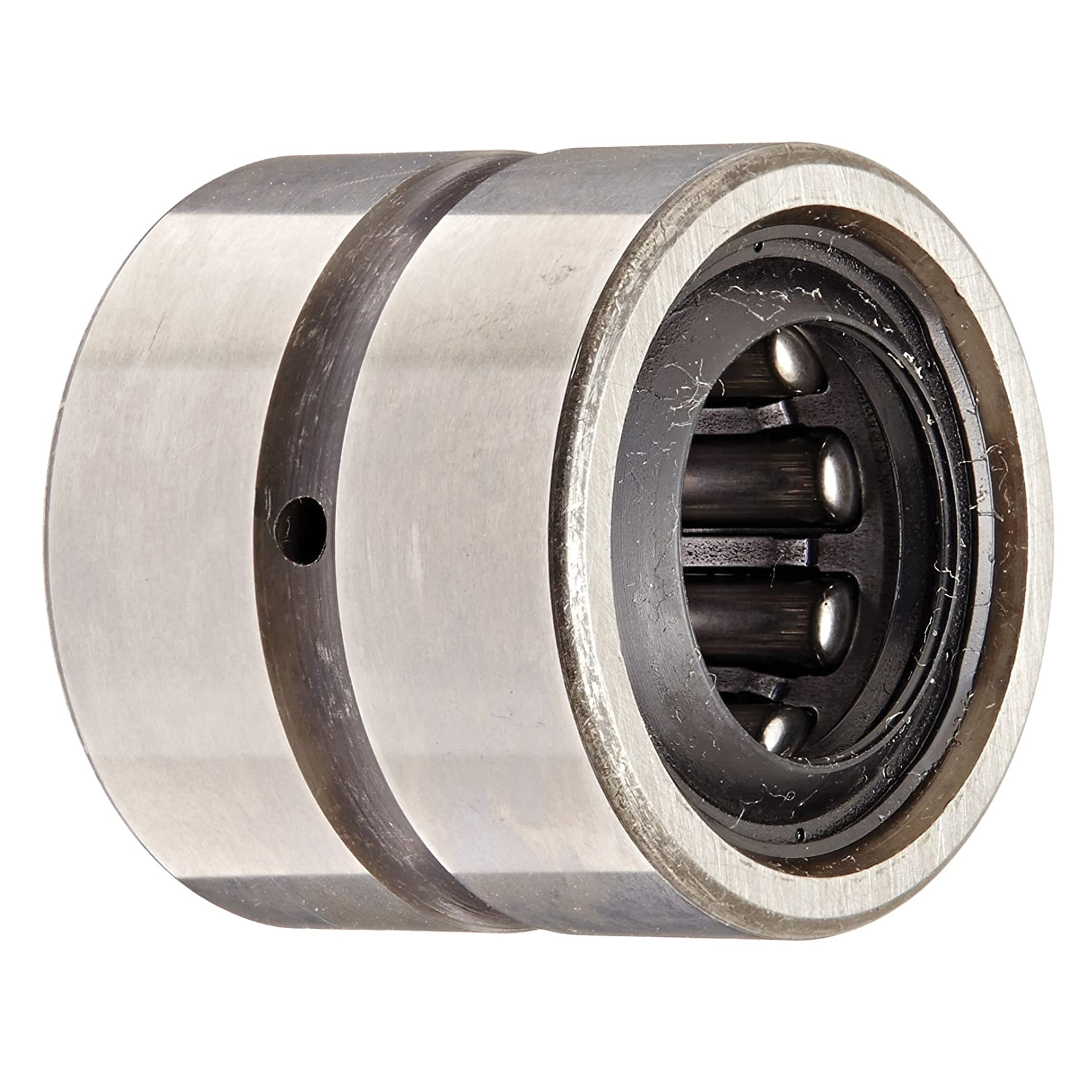

Koyo HJ-243320.2RS Inch Series Caged Heavy Duty Needle Roller Bearing, 1-1/2 in Dia Bore, 2-1/16 in OD, 1-1/4 in W, 10700 lbf Dynamic/16300 lbf Static Load
Heavy duty needle roller bearings consists of a machined and ground channel-shaped outer ring with a complement of needle rollers and a cage. The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication. These bearings can be used with or without machined and ground inner ring, depending on the suitability of the shaft as a raceway surface.
-
BrandKoyo
-
UPC605790216428
-
Manufacturer Part NumberHJ-243320.2RS
-
CountryUSA
-
Load Capacity10700 lbf Dynamic/16300 lbf Static
-
Cage MaterialSteel
-
Temperature Rating-25 to 225 deg F
-
Maximum Speed5100 rpm
-
Closure TypeContact Double Sealed
-
TypeCaged Heavy Duty
-
Width1-1/4 in
-
SeriesHJ Inch Series
-
Outside Diameter2-1/16 in
-
Bore Diameter1-1/2 in
- Thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross section
- Optimum speed and lubrication-retention capability
- Without inner ring
-
Alternative Part NumberHJ243320.2RSPBL125
-
UNSPSC31171505
-
Standards/ApprovalsANSI/ABMA 18.1|ASTM F2246|Military Standard MS 51961
-
