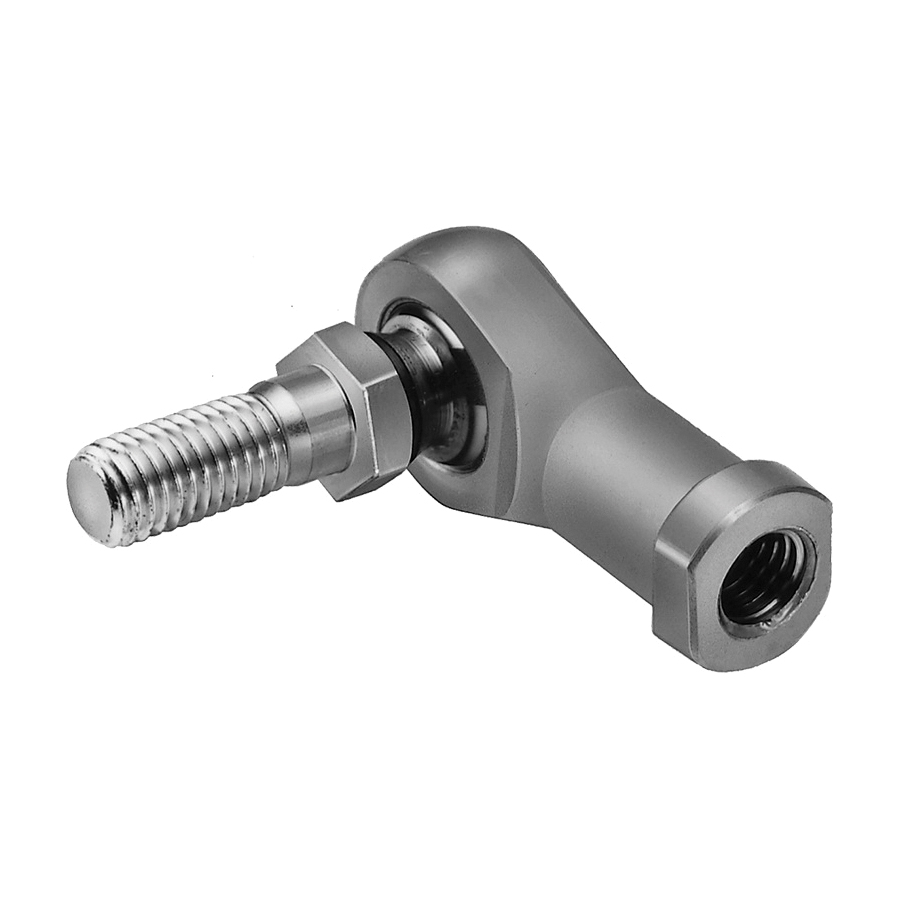

IKO LHS12 L-Ball Rod End, 12 mm Dia Bore, 32 mm W, 12400 N Static Load, Die Cast Zinc
L-Balls are self-aligning Rod Ends that enable tilting, oscillation, low-torque rotation and smooth power transmission in a wide range of automated equipment.
-
BrandIKO
-
Manufacturer Part NumberLHS12
-
CountryUSA
-
Load Capacity12400 N Static
-
MaterialDie Cast Zinc
-
Dimensions66 mm L x 61 mm H
-
Bore Diameter12 mm
- L-Balls are made from durable, die-cast zinc with studded balls set at a right angle to the body
- Uniform clearance between sliding surfaces enables smooth motion
- This economical bearing option is well-suited for automobiles, construction and agricultural equipment and packaging machinery
- Superior wear resistance provides stable accuracy for extended periods
- Designed for easy maintenance
-
UNSPSC31171508
-
