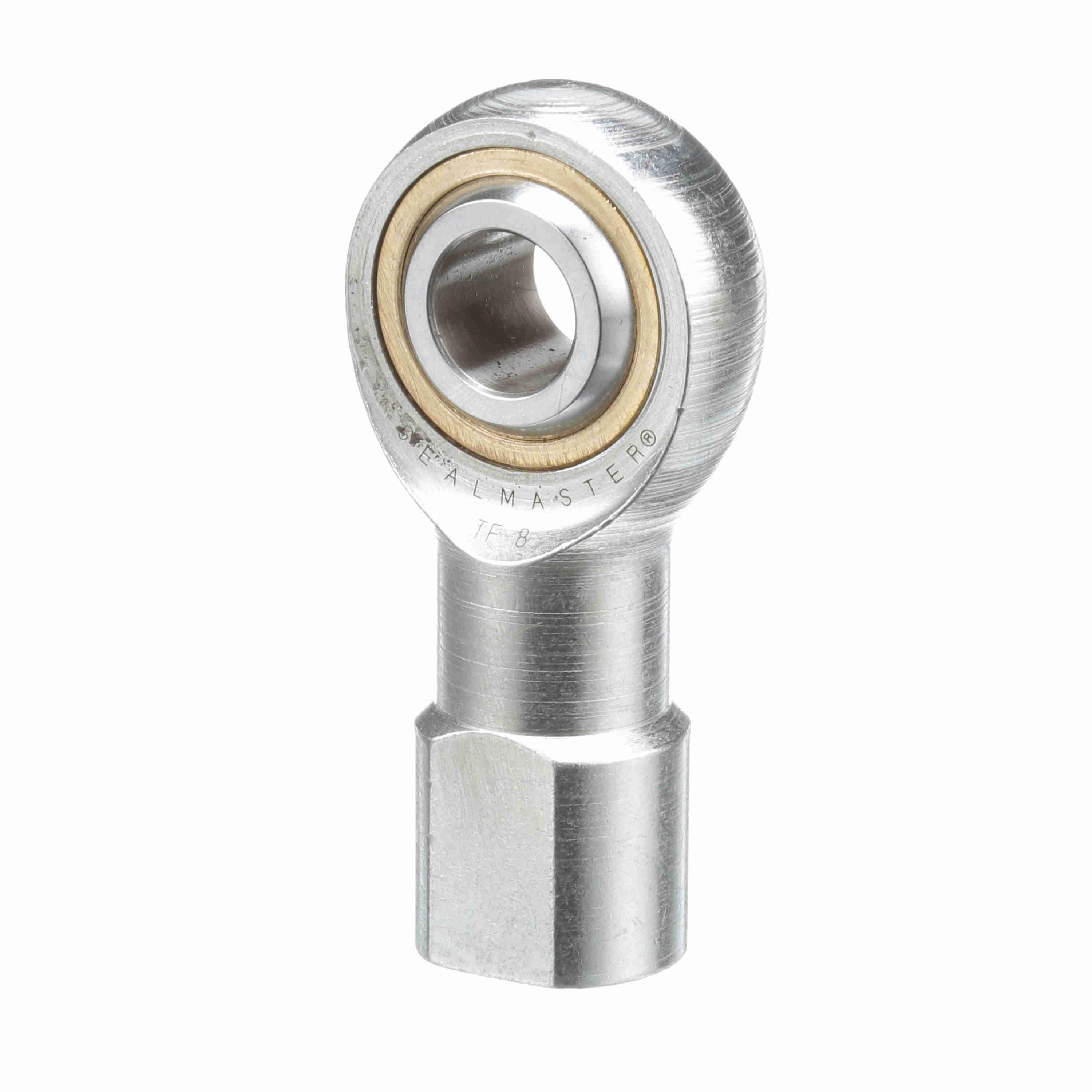

Sealmaster 1/2" SAE R/H FEMALE ROD ENDS SEA TF-8
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
-
BrandSealmaster®
-
UPC662288723516
-
Manufacturer Part Number1430800000
-
CountryUSA
-
Load Capacity7400 lb Static
-
Temperature Rating350 deg F
-
MaterialCarbon Steel
-
Thread Size1/2-20 Dia x 1.156 in L
-
Thread TypeFemale UNF
-
Type3-Piece Commercial Grade General Purpose
-
Width3/4 in
-
SeriesTF Series
-
Outside Diameter1.312 in
-
Bore Diameter1/2 in
- Machined carbon steel housings with protective coating for corrosion resistance
- Alloy steel heat treated and chrome plated ball for wear resistance properties
- Wrench flat on female rod ends facilitates assembly
- Designed with 1-piece bronze race for lower coefficient of friction
- Right hand internal thread
- Female External Threads
-
Alternative Part NumberTF 8
-
UNSPSC31171508
-
Package DescriptionEACH
-
