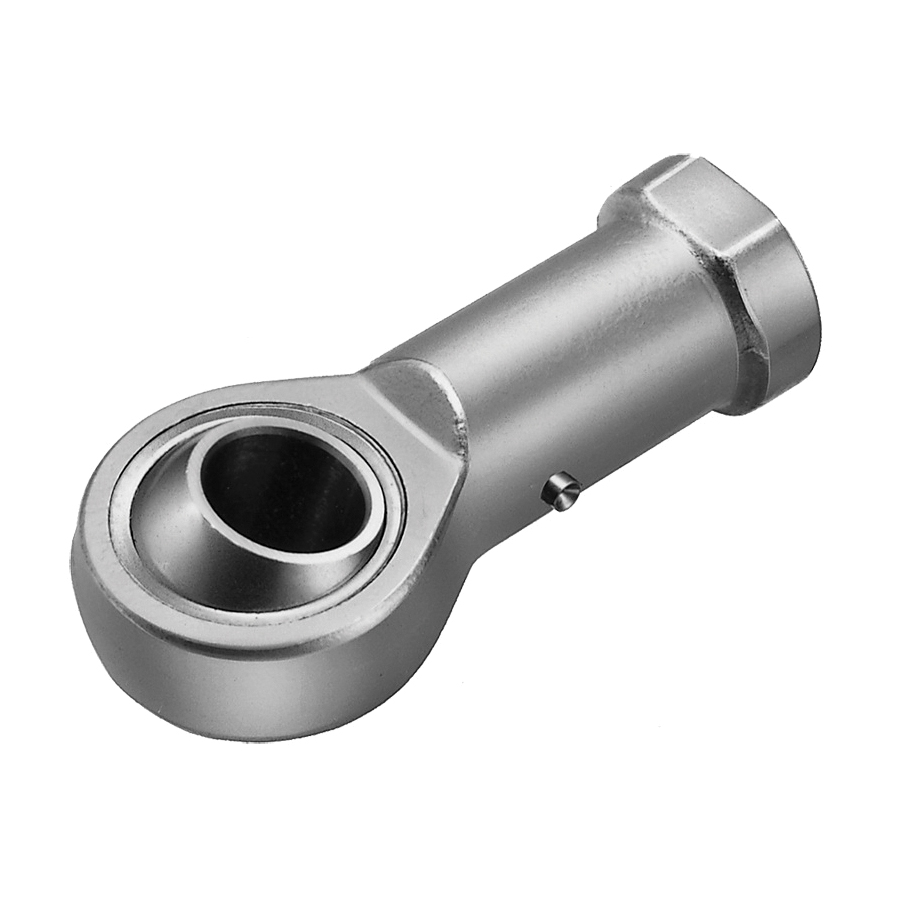

IKO Bearings 12-MM 1.75 R/HAND FEMALE ROD ENDS IKO PHS-12-A
PILLOBALL self-aligning Rod Ends can be used as link mechanisms in a variety of machines and are designed for easy installation.
-
BrandIKO
-
Manufacturer Part NumberPHS12A
-
CountryUSA
-
Load Capacity13100 N Dynamic/16900 N Static
-
Temperature Rating180 deg C
-
FinishZinc Chromate Plated
-
Thread SizeM12x1.75
-
Thread TypeRight Hand Female
-
TypeInsert/Lubrication Type
-
Width19 mm
-
SeriesPHS-A Metric Series
-
Dimensions65 mm H
-
Outside Diameter30 mm
-
Bore Diameter12 mm
- Each PILLOBALL Rod End type achieves smooth rotational and oscillatory motion while providing excellent wear and loading capabilities
- Insert-type PILLOBALLS are designed with a special copper alloy bushing to provide effective run-in properties
-
UNSPSC31171510
-
