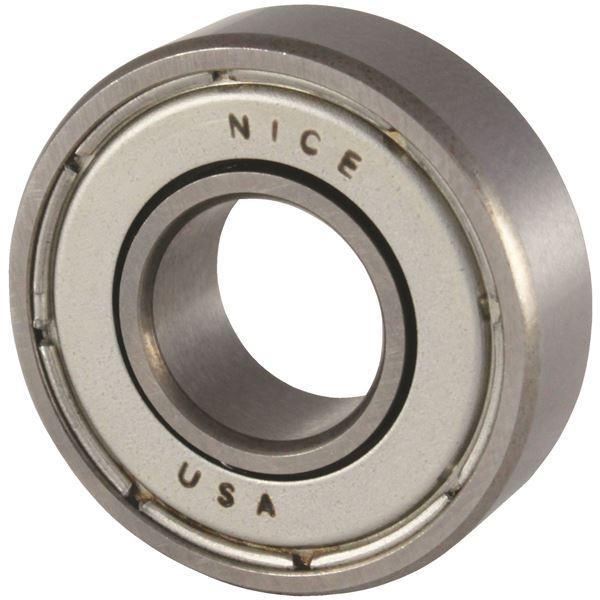

Nice® 1607DSTNTG18 1600® Non-Fill Slot Precision Deep Groove Ball Bearing, 7/16 in Dia Bore, 0.9063 in OD, 1 Rows, 5/16 in W, 300 lb Load
Precision ground 1600® Series bearings are specially designed to provide a line of low cost yet high quality bearings for adaptation to a majority of precision bearing applications. They are made in easy to use inch dimensions and are recommended for medium loads and for maximum speeds in the range of 5000 rpm. The 1600® Series bearings are precision ground on all surfaces with exceptional care given to the ball grooves. Careful heat treatment provides a uniform and exact degree of hardness for maximum life. A ball retainer, or separator, is used to increase the range of allowable speeds by reducing ball-to-ball contact friction.
-
BrandNice®
-
UPC637400291396
-
Manufacturer Part Number1607DSTNTG18
-
CountryUSA
-
Load Capacity300 lb
-
Cage MaterialNylon
-
Temperature Rating-40 to 284 deg F
-
FinishChrome Steel
-
Maximum Speed5000 rpm
-
Closure TypeDouble Shield
-
TypeNon-Fill Slot
-
Width5/16 in
-
Series1600®
-
Number of Rows1
-
Bearing Material52100 Steel
-
Outside Diameter0.9063 in
-
Bore Diameter7/16 in
- Precision ground on all surfaces and ball grooves for smooth rotation and easy installation
- Pregreased with metered Shell Alvania #2 grease
- Double sealed to keep grease in and contaminants out
- Standard design for maximum application versatility
- 698 lb dynamic/300 lb static
-
UNSPSC31171504
-
Package Description1/PK
-
Standards/ApprovalsABEC-1|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
