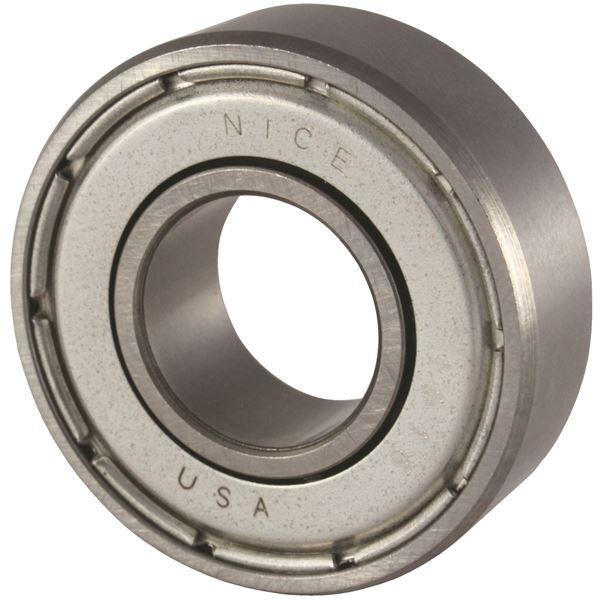

Nice® 1614DSTNTG18 1600® Non-Fill Slot Precision Deep Groove Ball Bearing, 3/8 in Dia Bore, 1-1/8 in OD, 1 Rows, 3/8 in W, 475 lb Load

0 Ratings
$5.93
In Stock
SKU: GUL16142Z
RBC-logo

Precision ground 1600® Series bearings are specially designed to provide a line of low cost yet high quality bearings for adaptation to a majority of precision bearing applications. They are made in easy to use inch dimensions and are recommended for medium loads and for maximum speeds in the range of 5000 rpm. The 1600® Series bearings are precision ground on all surfaces with exceptional care given to the ball grooves. Careful heat treatment provides a uniform and exact degree of hardness for maximum life. A ball retainer, or separator, is used to increase the range of allowable speeds by reducing ball-to-ball contact friction.

In Stock
HCI of Jackson: 180
HCI of Dyersburg: 3
HCI of Humboldt: 4
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Nice®
  • UPC
    637400291426
  • Manufacturer Part Number
    1614DSTNTG18
  • Country
    USA
Specification
  • Load Capacity
    475 lb
  • Cage Material
    Nylon
  • Temperature Rating
    -40 to 284 deg F
  • Finish
    Chrome Steel
  • Maximum Speed
    5000 rpm
  • Closure Type
    Double Shield
  • Type
    Non-Fill Slot
  • Width
    3/8 in
  • Series
    1600®
  • Number of Rows
    1
  • Bearing Material
    52100 Steel
  • Outside Diameter
    1-1/8 in
  • Bore Diameter
    3/8 in
Features
  • Precision ground on all surfaces and ball grooves for smooth rotation and easy installation
  • Pregreased with metered Shell Alvania #2 grease
  • Double sealed to keep grease in and contaminants out
  • Standard design for maximum application versatility
  • 1200 lb dynamic/475 lb static
Additional Information
  • UNSPSC
    31171504
  • Package Description
    1/PK
  • Standards/Approvals
    ABEC-1|ASPR|CAS|DFAR|FAR Standards
  • Warranty
    90 Days
