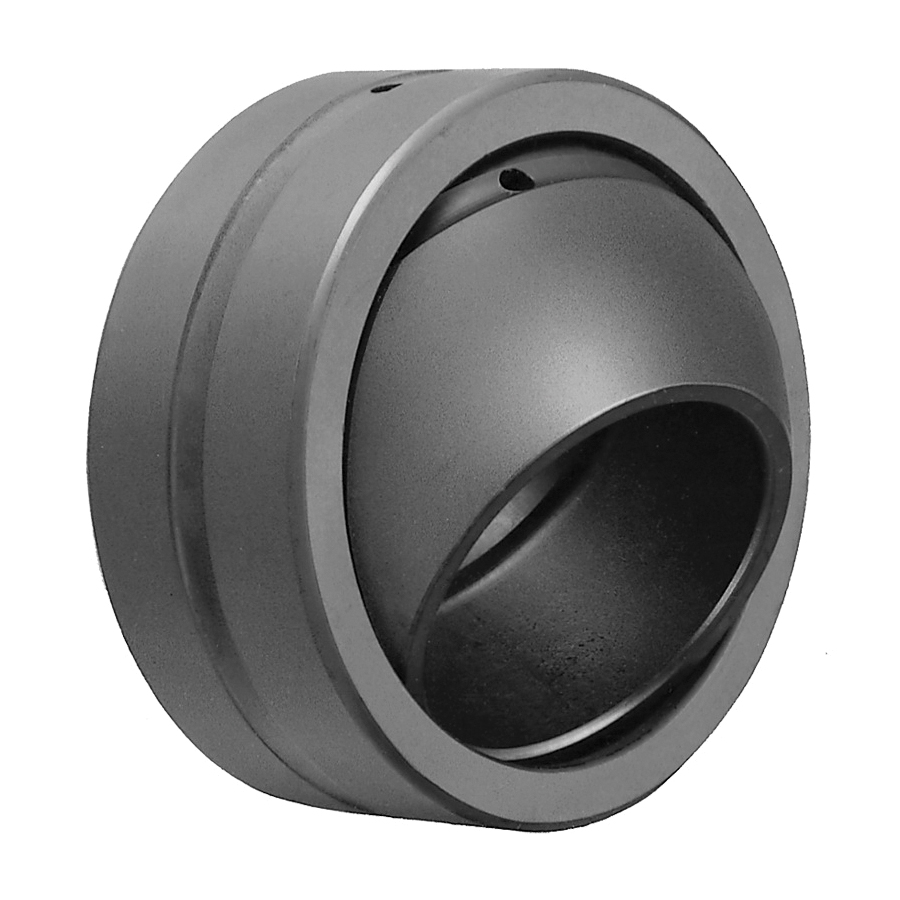

IKO SBB14 Inch Series Steel-On-Steel Spherical Bushing, 7/8 in Dia Bore, 1-7/16 in OD, 0.765 in W, 52300 N Dynamic/314000 N Static Load
Steel-on-steel Spherical Bushings handle alternate and shock loads in a wide range of industrial machinery and construction equipment.
-
BrandIKO
-
Manufacturer Part NumberSBB14
-
CountryUSA
-
Load Capacity52300 N Dynamic/314000 N Static
-
Temperature Rating180 deg C
-
FinishChromium Plated
-
TypeSteel-On-Steel
-
Width0.765 in
-
SeriesSBB Inch Series
-
Bearing MaterialHigh Carbon Steel
-
Outside Diameter1-7/16 in
-
Bore Diameter7/8 in
- High carbon chromium bearing steel used for inner and outer rings
- Phosphate-treated sliding surfaces dry-coated with molybdenum disulfide (MoS2) provide excellent wear resistance, large load capacity and low-torque operation
- Without seals
-
UNSPSC31171510
-
