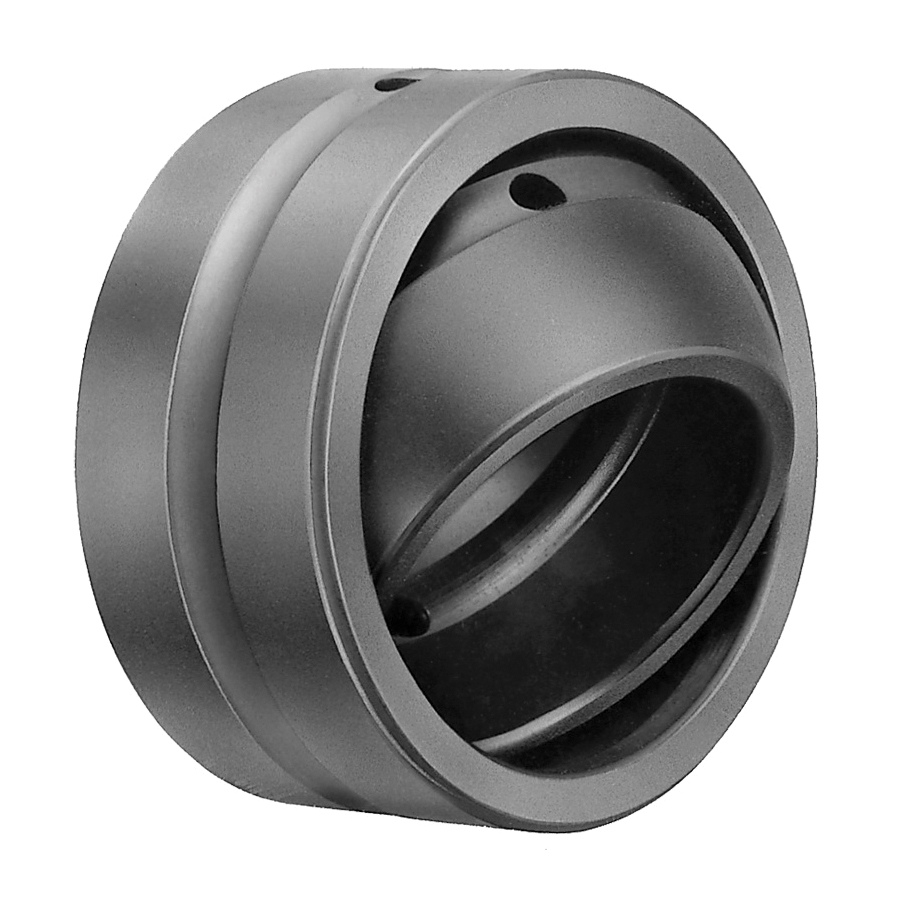

IKO SB35A Metric Series Steel-On-Steel Spherical Bushing, 35 mm Dia Bore, 55 mm OD, 30 mm W, 127000 N Dynamic/765000 N Static Load
Steel-on-steel Spherical Bushings handle alternate and shock loads in a wide range of industrial machinery and construction equipment.
-
BrandIKO
-
Manufacturer Part NumberSB35A
-
CountryUSA
-
Load Capacity127000 N Dynamic/765000 N Static
-
Temperature Rating180 deg C
-
FinishChromium Plated
-
TypeSteel-On-Steel
-
Width30 mm
-
SeriesSB-A Metric Series
-
Bearing MaterialHigh Carbon Steel
-
Outside Diameter55 mm
-
Bore Diameter35 mm
- High carbon chromium bearing steel used for inner and outer rings
- Phosphate-treated sliding surfaces dry-coated with molybdenum disulfide (MoS2) provide excellent wear resistance, large load capacity and low-torque operation
- Without seals
-
UNSPSC31171510
-
