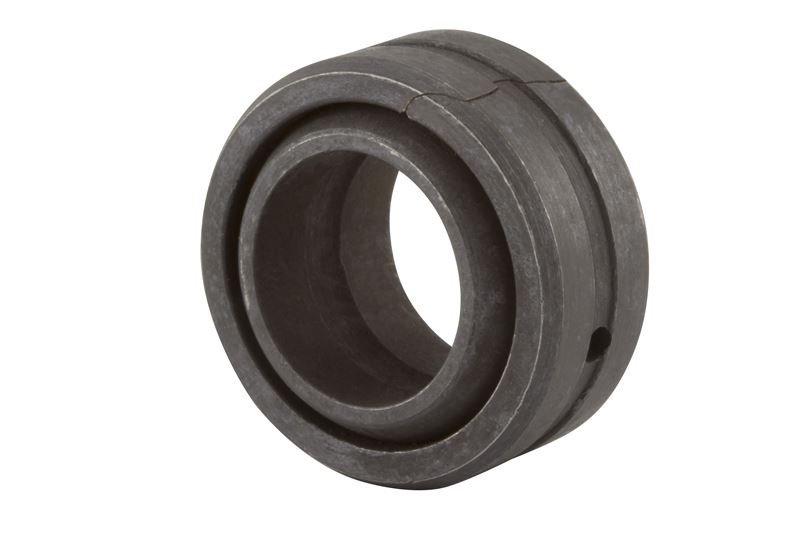

RBC® B14-L B-L Series Spherical Plain Bearing, 7/8 in Dia Bore, 1-7/16 in OD, 0.765 in W, 28800 lb Load
RBC® has been a pioneer in spherical plain bearing technology since inventing the fractured outer race design many years ago. Since that time, RBC® has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, and extended lubrication groove spherical plain bearing designs.
-
BrandRBC®
-
UPC637400000912
-
Manufacturer Part NumberB14-L
-
CountryUSA
-
Load Capacity28800 lb
-
Temperature Rating300 deg F
-
Closure TypeOpen
-
Width0.765 in
-
SeriesB-L Series
-
Bearing Material52100 Steel
-
Outside Diameter1-7/16 in
-
Bore Diameter7/8 in
- Designed to support heavy radial loads under misalignment
- These bearings also possess moderate thrust loading capability
- Lube holes and grooves to facilitate relubrication
- 14 deg misalignment angle
- 5400 lb axial static
- 7200 lb dynamic/28800 lb static
- Hydraulic Cylinder Ends, Linkages, Kingpin Assemblies, Clevis Ends, Shock Absorber Assemblies, Tie Rod Ends
- Possess moderate thrust loading capability
- Product Weight is 0.1789
-
UNSPSC31171510
-
Package Description1/PK
-
Standards/ApprovalsASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
