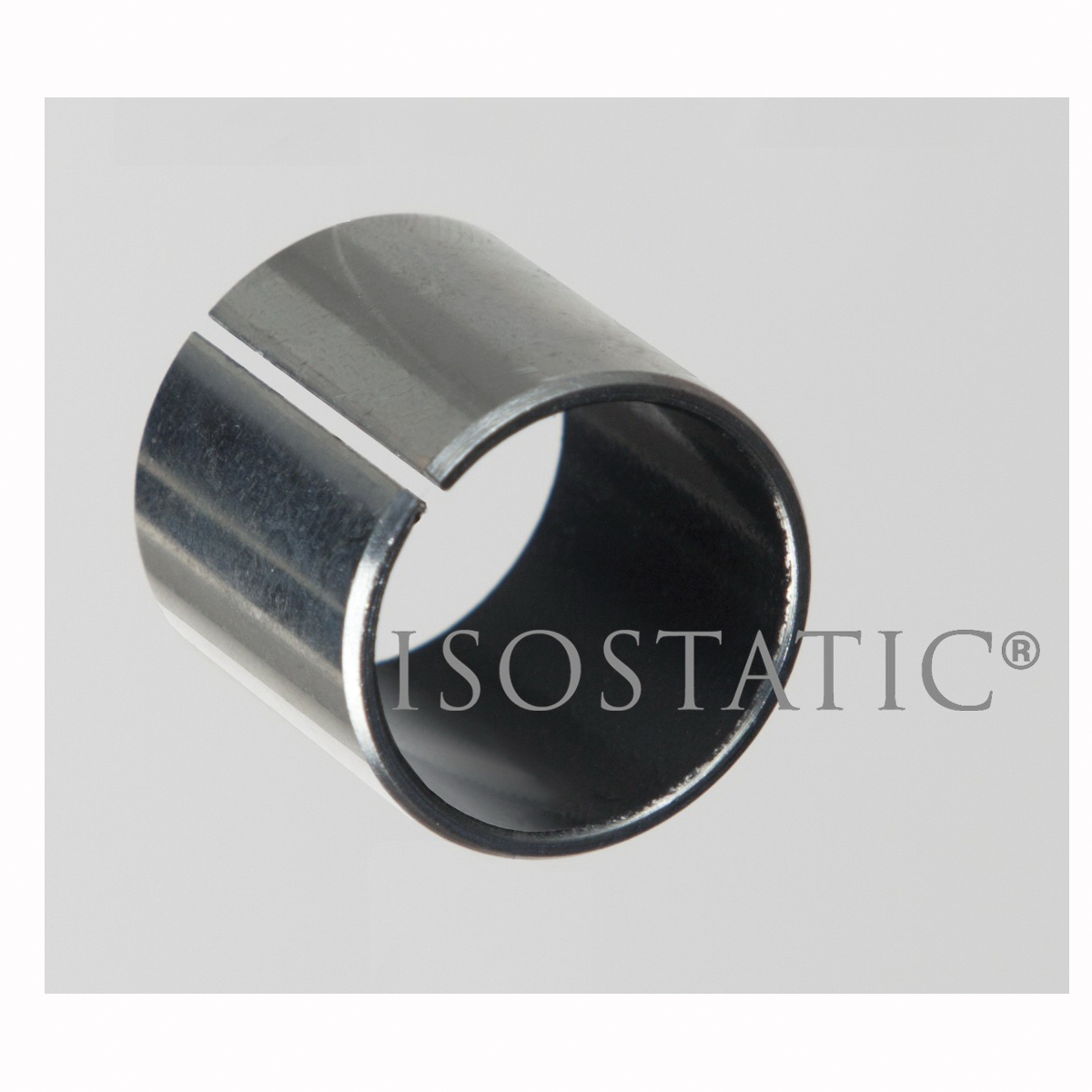

ISOSTATIC™ TU® 701031 Round Bore Sleeve Bearing, 12 mm Dia Bore, 14 mm OD, 15 mm W
ISOSTATIC™ TU® 701031 Round Bore Sleeve Bearing, 12 mm Dia Bore, 14 mm OD, 15 mm W
-
BrandISOSTATIC™
-
UPC846802067984
-
Manufacturer Part Number701031
-
CountryUSA
-
Temperature Rating-328 to 536 deg F
-
Maximum PV Rating102000 psi/sq-ft/min
-
Maximum Pressure36250 psi
-
Maximum Velocity1900 sfpm
-
TypeRound Bore
-
Width15 mm
-
Bearing MaterialSteel-Backed PTFE Lined
-
Outside Diameter14 mm
-
Bore Diameter12 mm
- Standard stock products
- Self-lubricating dry sliding bearing
- A steel-backed composite material comprised of low carbon steel backing for extremely high load capacity, sintered bronze offers optimal heat dispersion, PTFE-lead sliding surface creates a low friction coefficient and allows for a wide temperature range
- Can be used where many liquid lubricants fail, also performs well with lubrication
- Ideal for heavy loads at moderate speeds or light loads at high speeds
-
Alternative Part NumberM1215TU
-
UNSPSC31171509
-
Package Description1/PK
-
Standards/ApprovalsREACH|DFARS Compliant|PROP65: This product can expose you to chemicals including lead which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov
-
Specification Sheet
-
Catalog
