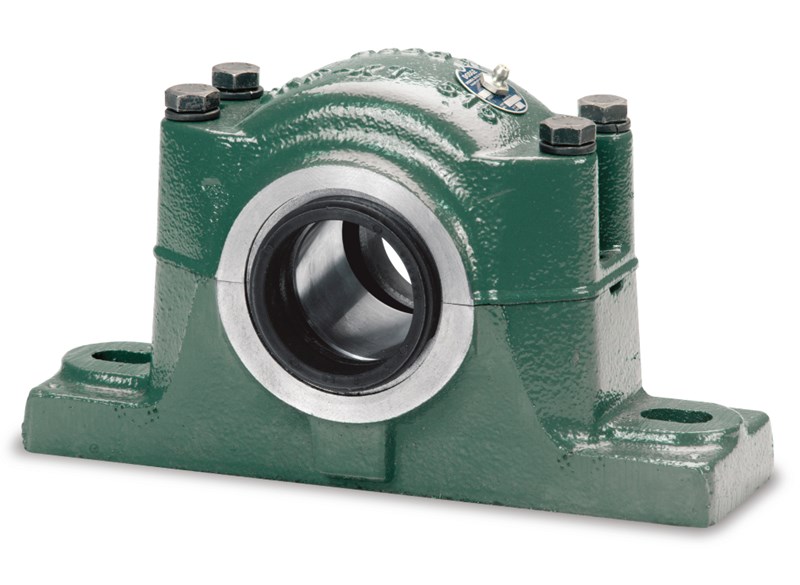

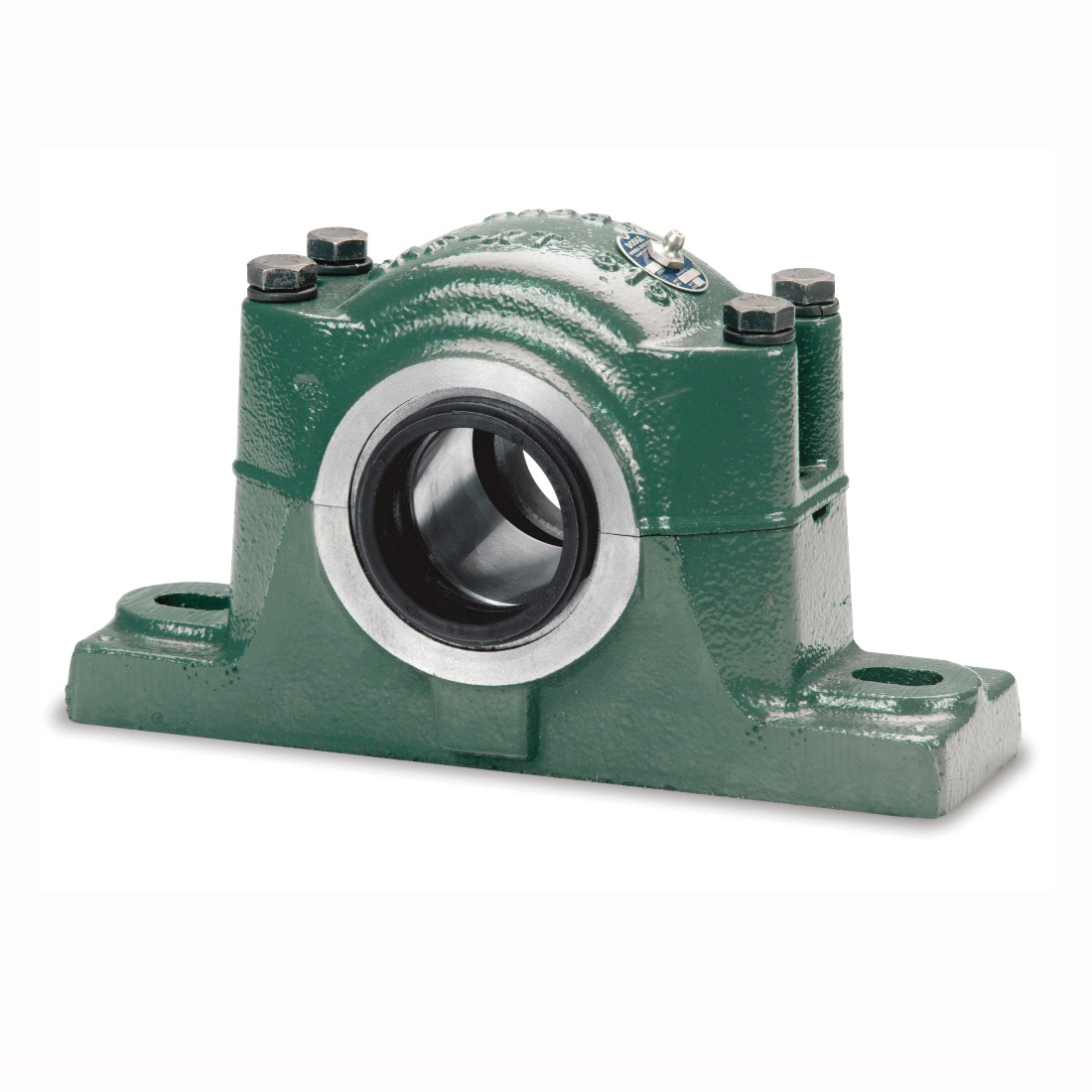

Dodge® 033485 MM700 Solidlube Pillow Block Plain Sleeve Bearing, 4 in Dia Bore, 9-7/8 to 11-1/2 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13-7/16 in OAL x 7-15/16 in OAH
Dodge® 033485 MM700 Solidlube Pillow Block Plain Sleeve Bearing, 4 in Dia Bore, 9-7/8 to 11-1/2 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13-7/16 in OAL x 7-15/16 in OAH
-
BrandDodge®
-
UPC782475380671
-
Manufacturer Part Number033485
-
CountryUSA
-
Temperature Rating-40 to 700 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed550 rpm
-
TypeSolidlube
-
Mounting TypeTwo-Bolt Base
-
Seal TypeUnsealed
-
SeriesMM700
-
Base Width3-3/16 in
-
Base to Bore Centerline3-3/4 in
-
Bolt Center-to-Center Length9-7/8 to 11-1/2 in
-
Bore Diameter4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height7-15/16 in
-
Overall Length13-7/16 in
-
Overall Width4 in
- Self lubricating, statically self-aligning bearings for extreme industrial applications
- Good in temperature extremes and inaccessible locations
- Will function effectively in a vacuum
- Ideal where bearings are subject to dry cycles or where lube systems would be too costly
- Usable in many corrosive medias
- Will operate in submersible applications of some low viscosity liquids
- Recommended for slow speeds and limited shaft movement applications
-
Alternative Part NumberP2B-MM7-400
-
UNSPSC31171515
-
Package DescriptionEACH
-
WarrantyLimited
-
Specification Sheet
-
Owners/User Manual
-
Line Drawing
-
Instruction/Installation Manual
-
Warranty Information
