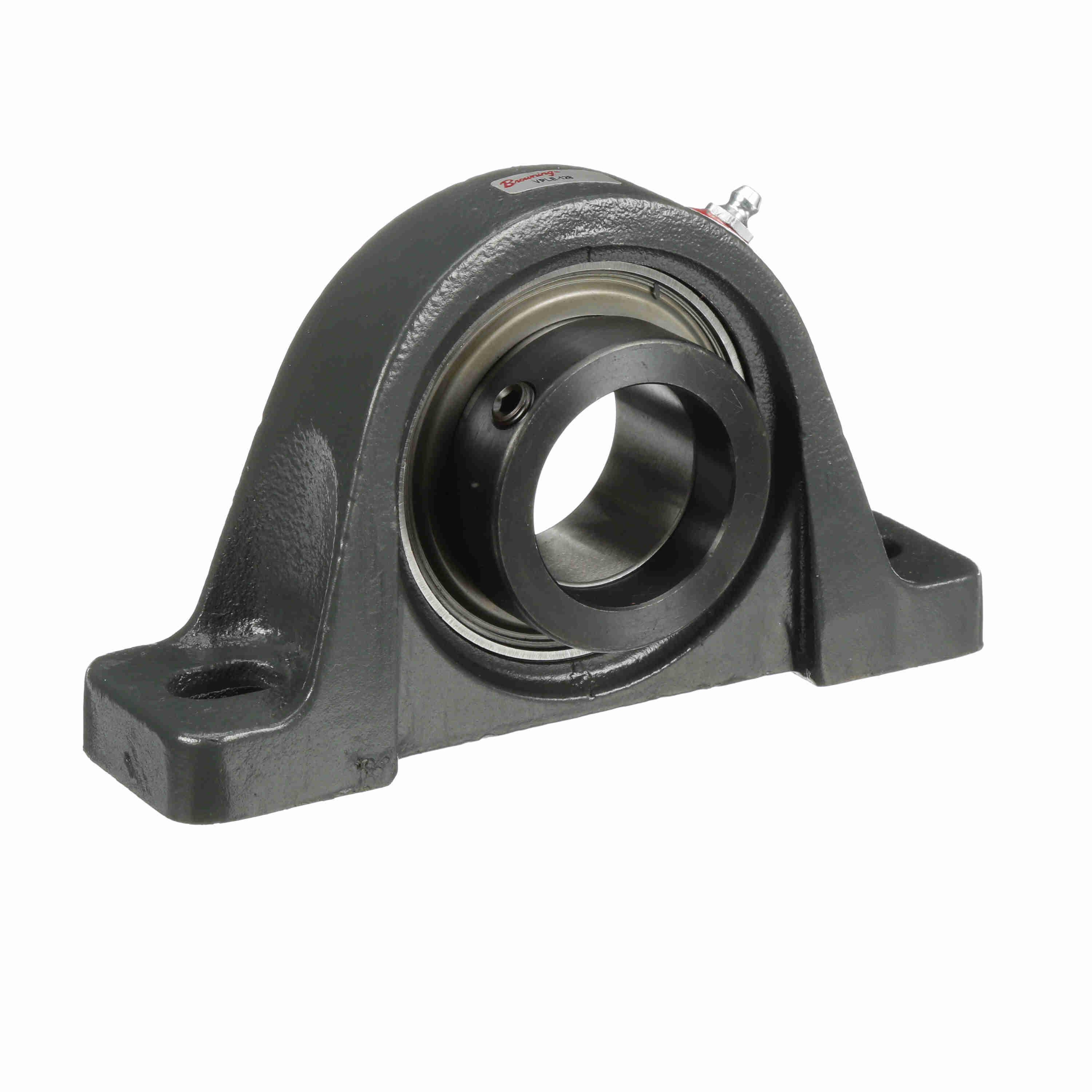

Browning® 767761 VPLE 100 Intermediate Duty Low Base Pillow Block Ball Bearing Unit, 3/4 in Dia Bore, 3-31/64 to 4-17/64 in L Bolt Center-to-Center, 1-1/4 in Base to Bore Centerline, 5 in OAL x 2-15/32 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289523986
-
Manufacturer Part Number767761
-
CountryUSA
-
Load Capacity2611 lb Dynamic/1444 lb Static
-
Locking DeviceEccentric
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed4000 rpm
-
TypeIntermediate Duty Low Base
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
SeriesVPLE 100
-
Base Width1-11/32 in
-
Base to Bore Centerline1-1/4 in
-
Bolt Center-to-Center Length3-31/64 to 4-17/64 in
-
Bore Diameter3/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height2-15/32 in
-
Overall Length5 in
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Nylon retainer
- 52100 steel insert
- Alemite fitting lubrication
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVPLE-112
-
UNSPSC31171505
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
