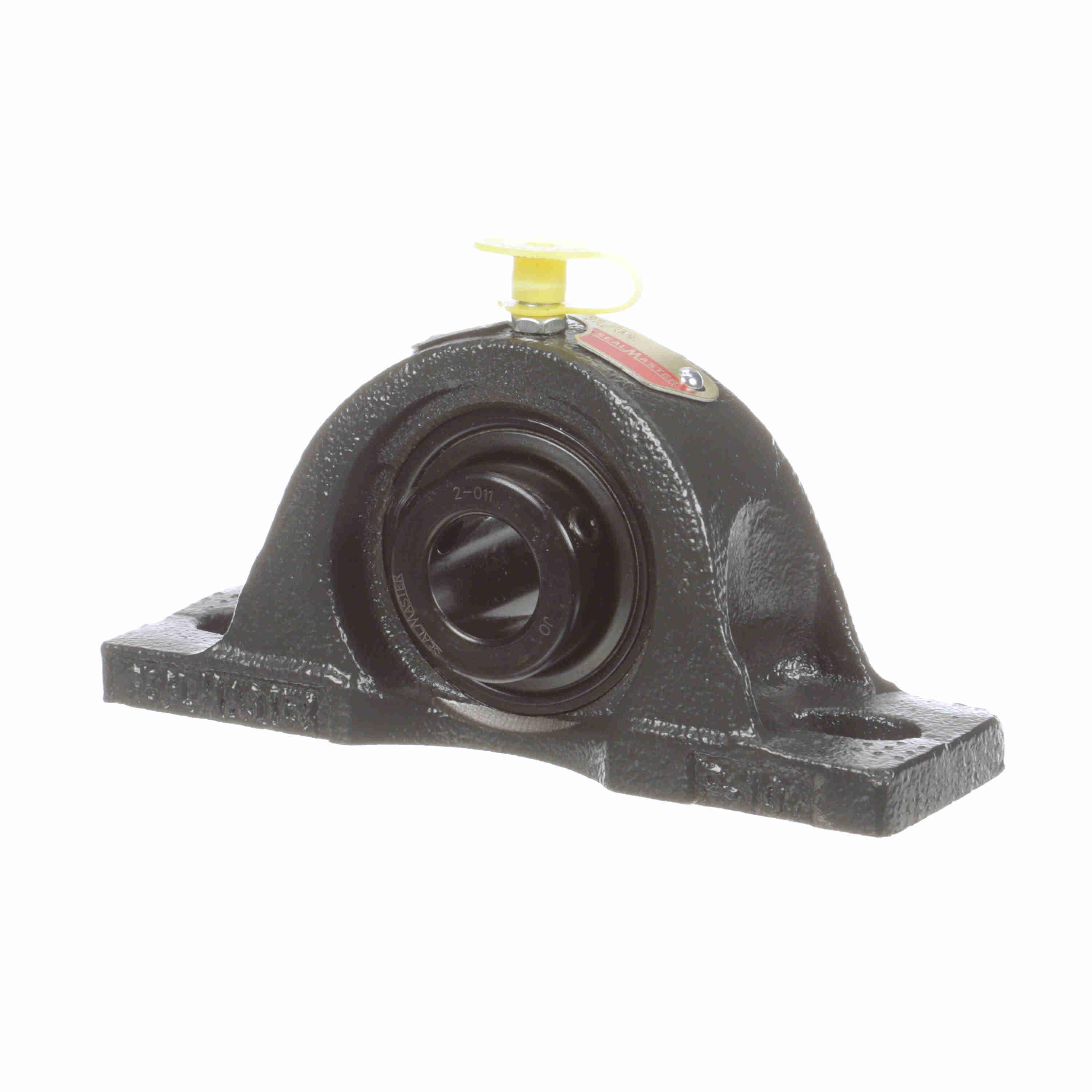

Sealmaster 20-MM-ID 2-B LOW BB PILLOW BLOCKS SEA NPL-204-C
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461055007
-
Manufacturer Part Number710369
-
CountryUSA
-
Load Capacity11614 N Dynamic
-
Locking DeviceSet Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed6450 rpm
-
TypeStandard-Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeContact
-
SeriesNPL
-
Base Width38.1 mm
-
Base to Bore Centerline31.8 mm
-
Bolt Center-to-Center Length85.7 to 104.8 mm
-
Bore Diameter20 mm
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height58.7 mm
-
Overall Length127 mm
-
Overall Width31 mm
- Wide outer ring
- Lock pin and dimple
- Zone hardened inner race
- Land riding retainer
- Housing fit
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- GoldPlex®-HP grease
- Alemite fitting lubrication
- 52100 black oxide coated steel insert
-
Alternative Part NumberNPL-204C
-
UNSPSC31171504
-
