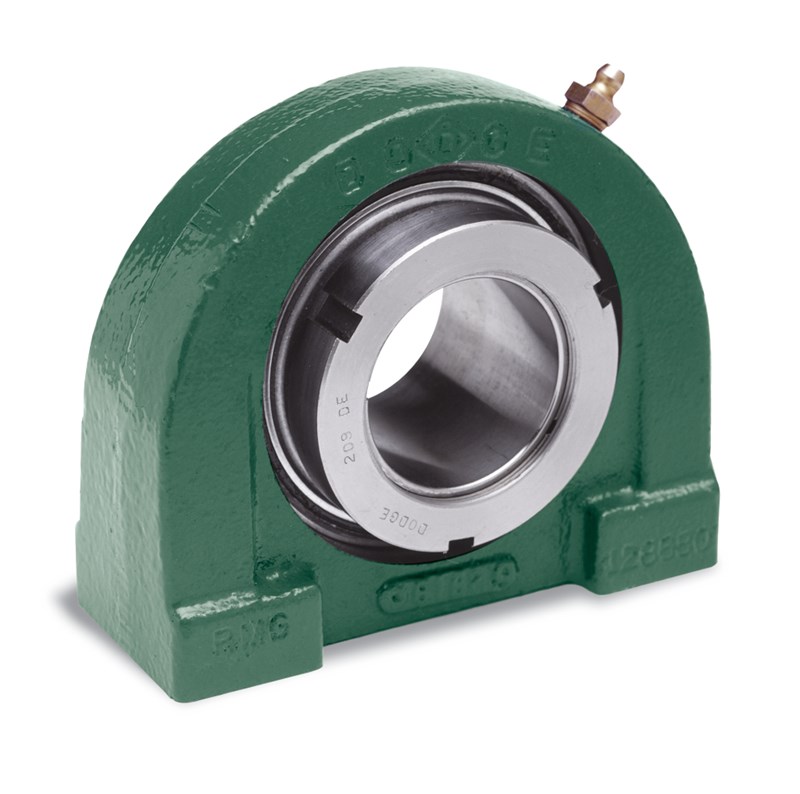

Dodge® 124468 206 Normal Duty Pillow Block Ball Bearing Unit, 1-3/16 in Dia Bore, 3 in L Bolt Center-to-Center, 1.69 in Base to Bore Centerline, 4 in OAL x 1.57 in OAH
For over 70 years, Dodge® has been talking to mounted bearing users and listening to their needs. This experience lead to the design of the optimum mounted ball bearing. A state-of-the-art facility was built to manufacture the new Dodge® design. The result is the Dodge® SC/SCM/SL line. Its premium features make it the most reliable setscrew mounted ball bearing on the market and provides the user unmatched quality and true total value.
-
BrandDodge®
-
UPC782475513734
-
Manufacturer Part Number124468
-
CountryUSA
-
Load Capacity4368 lb Dynamic/2538 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
MaterialSteel
-
Maximum Speed6500 rpm
-
TypeNormal Duty
-
Mounting TypeTapped Base
-
Seal TypeSingle Lip
-
Series206
-
Base Width1-1/2 in
-
Base to Bore Centerline1.69 in
-
Bolt Center-to-Center Length3 in
-
Bore Diameter1-3/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height1.57 in
-
Overall Length4 in
-
Overall Width1.52 in
- Normal duty wide inner ring
- Stronger and more flexible cage
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100939370 |
| Motion Industries | 00560564 |
-
Alternative Part NumberTB-SC-103
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Owners/User Manual
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
