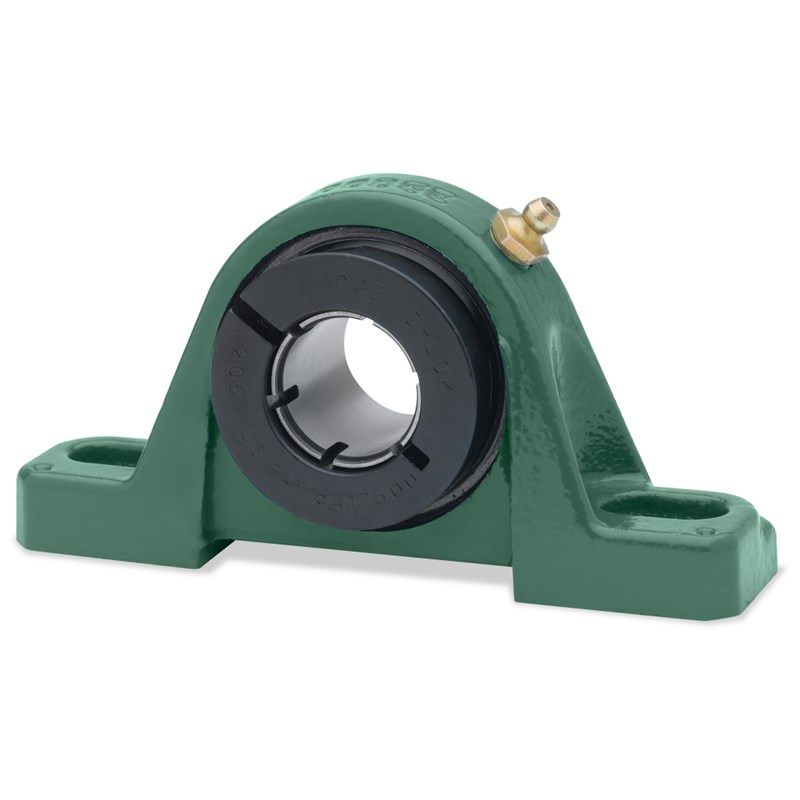

Dodge® 128714 210 Normal Duty Pillow Block Ball Bearing Unit, 1-15/16 in Dia Bore, 6 to 6.68 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8.12 in OAL x 4.53 in OAH
For concentric grip on the shaft and less vibration at higher speeds, specify Dodge® D-LOK® normal- or medium-duty mounted ball bearings. These unique, concentric collar bearings are engineered with features that assure you superior holding power with improved concentricity. Even at high speeds, the D-LOK® bearing grips the shaft tighter and more uniformly for less vibration.
-
BrandDodge®
-
UPC782475890613
-
Manufacturer Part Number128714
-
CountryUSA
-
Load Capacity7891 lb Dynamic/5213 lb Static
-
Locking DeviceD-LOK® Concentric Clamp Collar
-
FinishPowder Coated
-
MaterialSteel
-
Maximum Speed4500 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
Series210
-
Base Width2-1/4 in
-
Base to Bore Centerline2-1/4 in
-
Bolt Center-to-Center Length6 to 6.68 in
-
Bore Diameter1-15/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4.53 in
-
Overall Length8.12 in
-
Overall Width2.01 in
- Precision-hardened and honed inner and outer rings
- New rugged housing design
- Normal duty wide inner ring
- D-LOK® locking mechanism
- Dual guard positive contact seal including rubberized flingers
- Stronger and flexible ball retainer
- Simplified anti-rotation device
- Electrostatically applied epoxy paint
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100733461 |
| Motion Industries | 00557397 |
-
Alternative Part NumberP2B-DL-115
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Warranty Information
-
Full Engineering Drawing
-
Catalog
-
Specification Sheet
