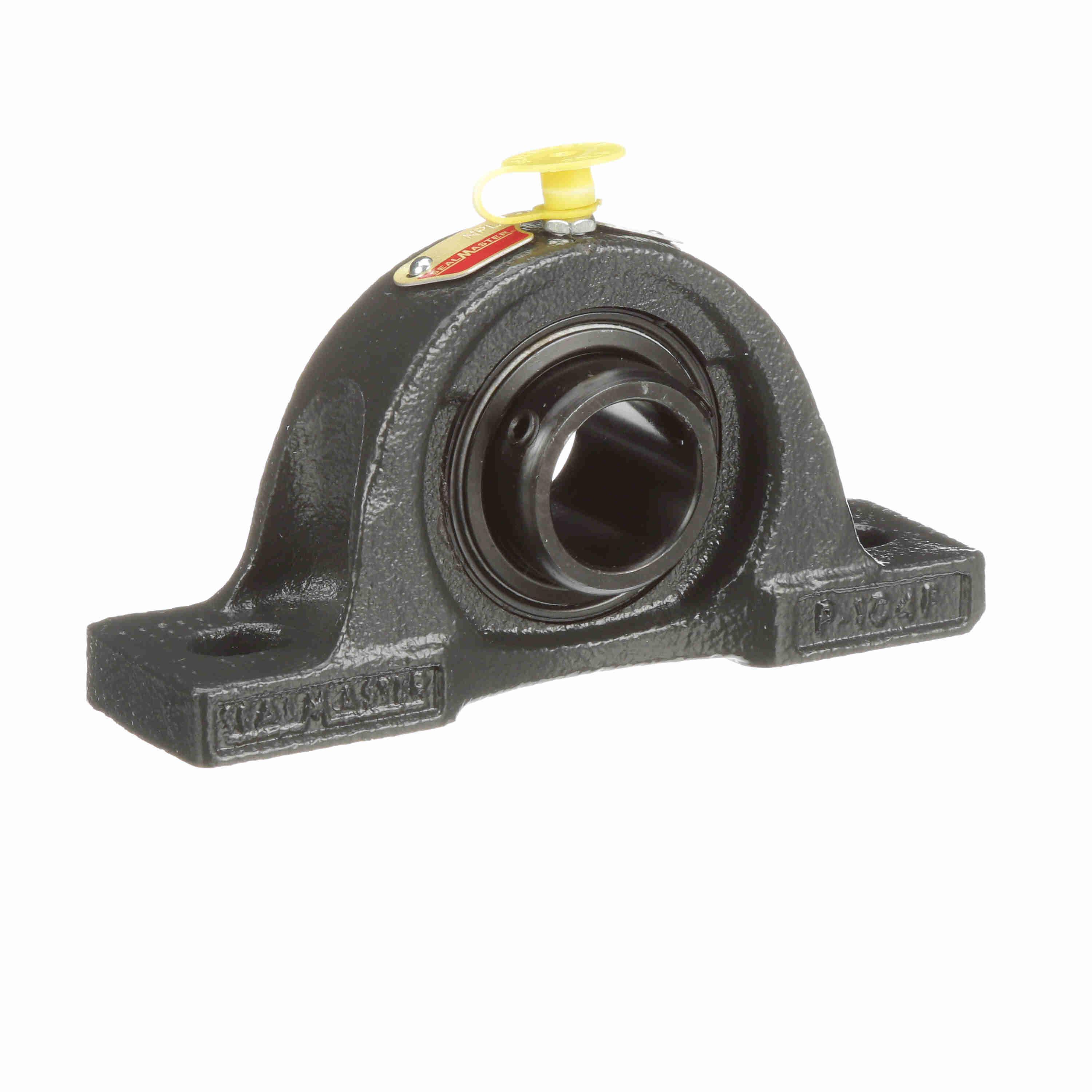

Sealmaster® 700574 NPL Standard-Duty Pillow Block Ball Bearing Unit, 1-1/8 in Dia Bore, 4-7/16 to 5-1/16 in L Bolt Center-to-Center, 1-9/16 in Base to Bore Centerline, 6-1/2 in OAL x 3-1/4 in OAH
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461004593
-
Manufacturer Part Number700574
-
CountryUSA
-
Load Capacity4381 lb Dynamic
-
Locking DeviceSet Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed5450 rpm
-
TypeStandard-Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeFelt
-
SeriesNPL
-
Base Width1-7/8 in
-
Base to Bore Centerline1-9/16 in
-
Bolt Center-to-Center Length4-7/16 to 5-1/16 in
-
Bore Diameter1-1/8 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height3-1/4 in
-
Overall Length6-1/2 in
-
Overall Width1-1/2 in
- Wide outer ring
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- GoldPlex®-HP grease
- Alemite fitting lubrication
- 52100 black oxide coated steel insert
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 44A424 |
-
Alternative Part NumberNPL-18
-
UNSPSC31171504
-
Package DescriptionEACH
-
