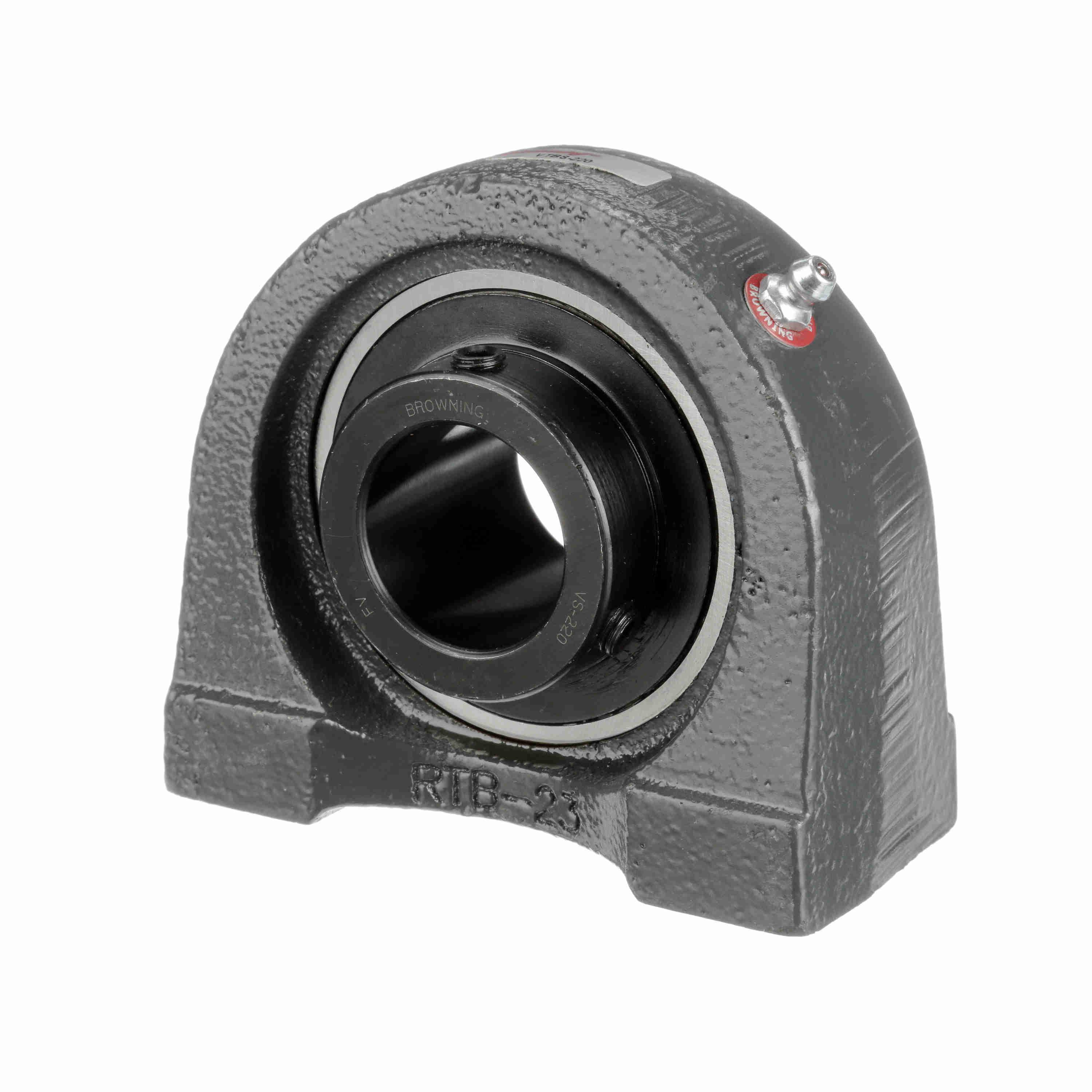

Browning 1-1/4"-ID TAPPED-BASE PILLOW BLOCK BRW V-TB-S-220
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289530229
-
Manufacturer Part Number767461
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed4000 rpm
-
TypeNormal Duty
-
Mounting TypeTapped Base
-
Seal TypeSingle Lip Contact with Flinger
-
SeriesVTBS 200
-
Base Width1-7/8 in
-
Base to Bore Centerline1-7/8 in
-
Bolt Center-to-Center Length3-1/4 in
-
Bore Diameter1-1/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height3-3/4 in
-
Overall Length4-1/4 in
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 bearing steel insert
- Alemite fitting lubrication
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVTBS-220
-
UNSPSC31171505
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
