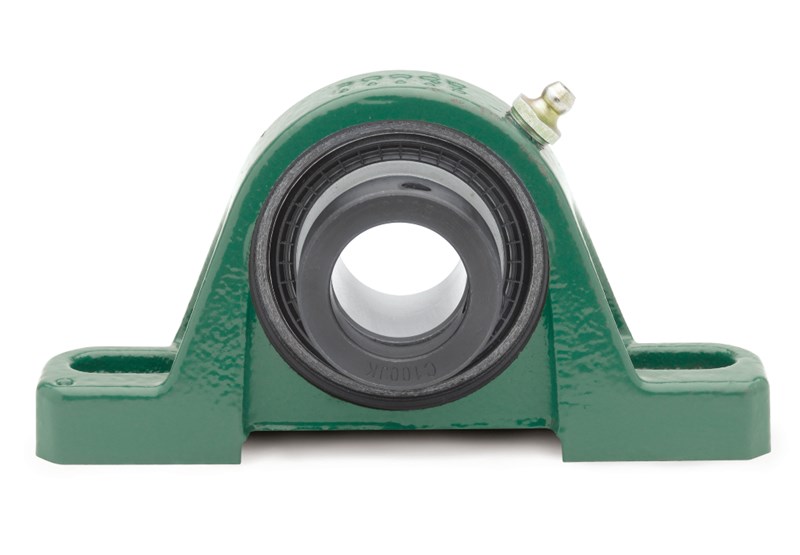

Dodge® 064230 206 Normal Duty Pillow Block Ball Bearing Unit, 1-1/4 in Dia Bore, 4-1/4 to 5 in L Bolt Center-to-Center, 1.63 in Base to Bore Centerline, 6-1/4 in OAL x 3-1/4 in OAH
For more than 70 years, Dodge® has been talking to mounted bearing users and listening to their needs. This experience led to design of the optimum mounted ball bearings. The result is the Dodge® SXR line, the most current eccentric collar mounted ball bearing design on the market, provides the user unmatched quality and true total value. The Dodge® eccentric ball bearing is manufactured at the state-of-the-art Dodge® bearing plant in Rogersville, Tennessee - an ISO 9002 certified plant.
-
BrandDodge®
-
UPC782476037802
-
Manufacturer Part Number064230
-
CountryUSA
-
Load Capacity4368 lb Dynamic/2538 lb Static
-
Locking DeviceEccentric Collar
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed6500 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
Series206
-
Base Width1-3/4 in
-
Base to Bore Centerline1.63 in
-
Bolt Center-to-Center Length4-1/4 to 5 in
-
Bore Diameter1-1/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height3-1/4 in
-
Overall Length6-1/4 in
-
Overall Width1.77 in
- Wide inner ring
- Precision hardened and honed
- DualGuard™ seal with rubberized flinger
- Stronger and flexible ball cage
- Simplified anti-rotation device
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101529580 |
| Motion Industries | 03708335 |
-
Alternative Part NumberP2B-SXR-104S
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Warranty Information
-
Owners/User Manual
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
