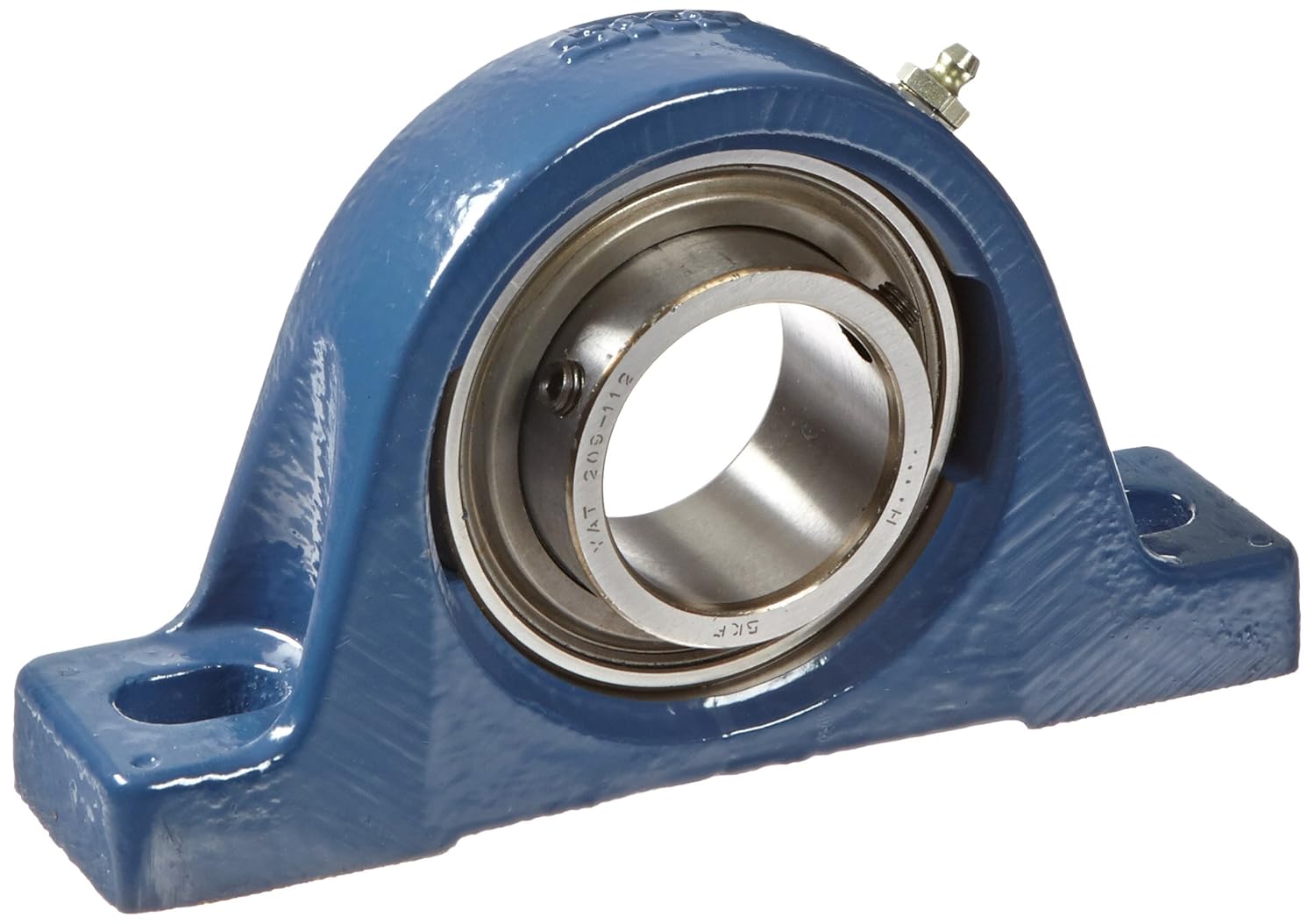

FYH® NAPK209 26 NAPK Normal Duty Pillow Block Unit, 1-5/8 in Dia Bore, 5-7/8 in L Bolt Center-to-Center, 2-1/16 in Base to Bore Centerline, 7-15/32 in OAL 4-3/16 in OAH
FYH® NAPK209 26 NAPK Normal Duty Pillow Block Unit, 1-5/8 in Dia Bore, 5-7/8 in L Bolt Center-to-Center, 2-1/16 in Base to Bore Centerline, 7-15/32 in OAL 4-3/16 in OAH
-
BrandFYH®
-
Manufacturer Part NumberNAPK209 26
-
CountryUSA
-
Load Capacity34.1 kN Dynamic/21.3 kN Static
-
Locking DeviceEccentric Collar
-
TypeNormal Duty
-
SeriesNAPK
-
Base Width2-1/8 in
-
Base to Bore Centerline2-1/16 in
-
Bolt Center-to-Center Length5-7/8 in
-
Bore Diameter1-5/8 in
-
Bore TypeCylindrical
-
Overall Height4-3/16 in
-
Overall Length7-15/32 in
